Description

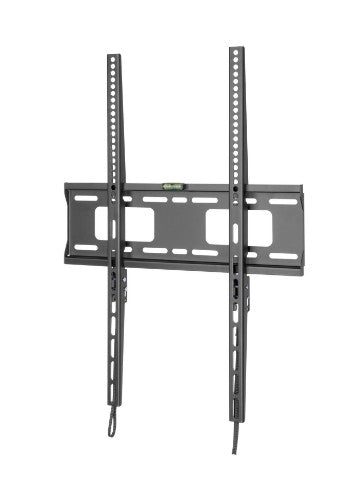

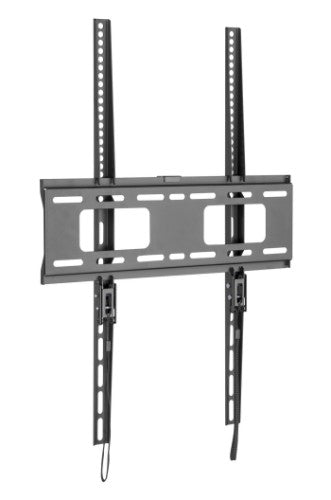

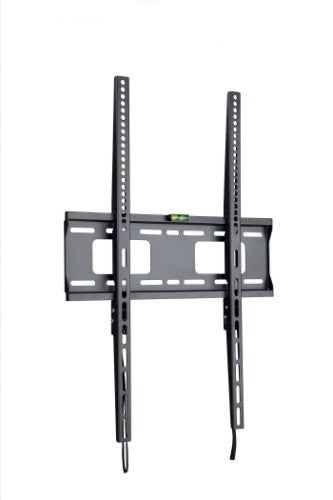

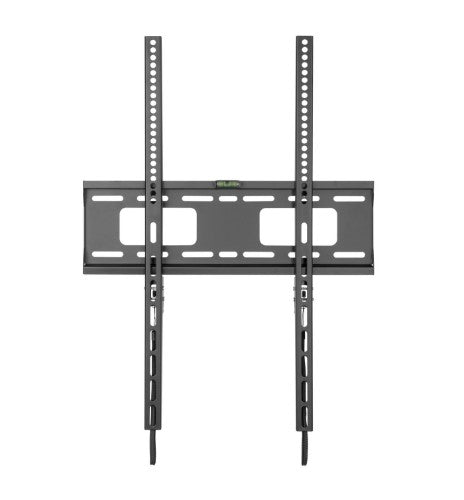

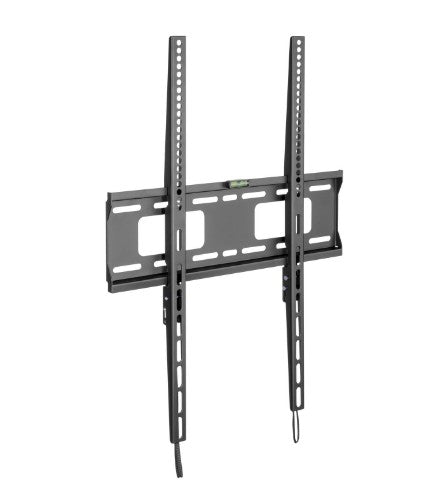

Pro Large Portrait Wall Mount, Max 75 kg. Up to VESA 400 x 600
Install flat panel in portrait and with unique safety and service features. Lock it with a padlock (not included).
Key Features
- Portrait mode
- Highly secured
- Easy access to installations
- Increased ventilation
- VESA 200x200 / 200x300 / 200x400 / 300x300 / 400x400 / 400x600 mm
- Anti Theft
Description
Typical installation is signage screens (with a player behind screen)Install flat panel in portrait and with unique safety and service features. Lock it with a padlock (not included).
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 94 cm (37") |
| Panel mounting interface | 200 x 200 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 600 mm |
| Maximum screen size | 190.5 cm (75") |
| Maximum weight capacity | 75 kg |
| Suitable for computer monitor | Yes |
| Ergonomics | |
| Distance to the wall (max) | 2.7 cm |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 2.7 cm |
| Product colour | Black |
| Mounting type | Wall |
| Sustainability compliance | Yes |
| Warranty period | 12 year(s) |
| Compliance certificates | RoHS |
| Design | |
| Accepts padlock | Yes |
| Product colour | Black |
| Anti-theft function | Yes |
| Housing material | Steel |
| Packaging content | |
| Screws included | Yes |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Packaging data | |
| Package width | 156 mm |
| Package depth | 660 mm |
| Package height | 10 mm |
| Package weight | 2.15 kg |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Other features | |
| VESA mounting | Yes |
| Mounting type | Wall |
