203 DPI, 115 mm/s, 104mm, Bluetooth, WLAN, RFID, 256/512MB, Zebra Link-OS
Description

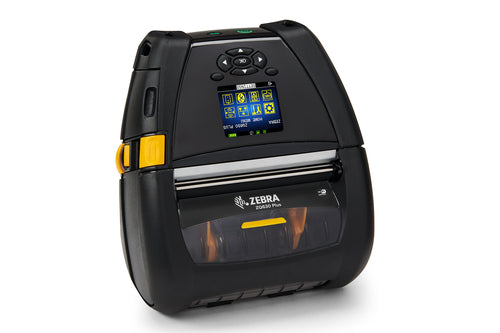

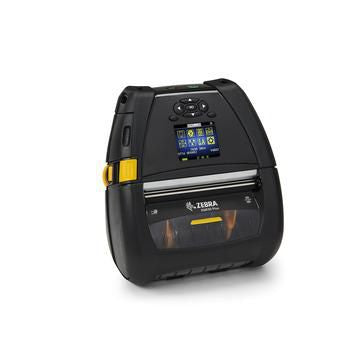

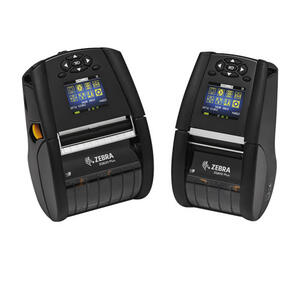

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra’s ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity–6600 mAh–power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra’s Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.
Specifications
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
10.4 cm |
| Printing |
|---|
| Print speed |
115 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
10.4 cm |
| Print technology |
Direct thermal |
| Display |
|---|
| Display resolution |
288 x 240 pixels |
| Network |
|---|
| Wi-Fi |
Yes |
| Ethernet LAN |
No |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Supported paper width |
112 mm |
| Maximum media length |
81.3 cm |
| Ports & interfaces |
|---|
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| RS-232 ports |
1 |
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
No |
| USB port |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Performance |
|---|
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, Macro PDF417, MaxiCode, PDF417, Plessey, QR Code, TLC39, UPC-A, UPC-E |
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Built-in RFID module |
Yes |
| Design |
|---|
| Display resolution |
288 x 240 pixels |
| Product colour |
Black |
| Power |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
6600 mAh |
| Power source type |
Battery |
| Technical details |
|---|
| Product colour |
Black |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, Macro PDF417, MaxiCode, PDF417, Plessey, QR Code, TLC39, UPC-A, UPC-E |
| Built-in RFID module |
Yes |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
6600 mAh |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
82.5 mm |
| Depth |
165.1 mm |
| Height |
186.7 mm |
| Weight |
1.1 kg |
