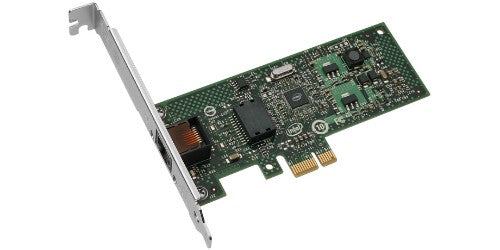

Gigabit PRO/1000 CT Desktop Adapter PCI-express
Description
For PCs with PCI Express (PCIe*) slots, the Intel Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
1.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Supported data transfer rates |
10/100/1000 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Network |
|---|
| Supported data transfer rates |
10/100/1000 Mbit/s |
| Maximum operating distance |
100 m |
| LAN controller |
Intel® 82574L |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Interface type |
PCIe v1.1 (2.5 GT/s) |
| Compliance industry standards |
802.3z |
| Speed & slot width |
2.5 GT/s, x1 Lane |
| Low halogen options available |
No |
| Harmonized System (HS) code |
8517620090 |
| Export Control Classification Number (ECCN) |
5A991 |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Thermal Design Power (TDP) |
1.9 W |
| Product type |
Network Interface Card |
| Processor family |
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Status |
Launched |
| Product brief URL |
http://www.intel.com/Assets/PDF/prodbrief/319831.pdf |
| Network interface card type |
Desktop |
| Network interface card cable medium |
Copper |
| Market segment |
Desktop |
| Launch date |
Q3'08 |
| Last change |
63903513 |
| Design |
|---|
| Certification |
FCC B, UL, CE |
| Internal |
Yes |
| Product family |
Intel Gigabit desktop adapter |
| Product series |
Intel Gigabit CT |
| Product codename |
Shelter Island |
| Power |
|---|
| Power consumption (typical) |
1.9 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
55.3 mm |
| Depth |
119.2 mm |
| Height |
120 mm |
| Performance |
|---|
| Ethernet adapter ARK ID |
50395 |
| Speed & slot width |
2.5 GT/s, x1 Lane |
| Certificates |
|---|
| Certification |
FCC B, UL, CE |
| Other features |
|---|
| Thermal Design Power (TDP) |
1.9 W |
| Product type |
Network Interface Card |
| Processor family |
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet adapter ARK ID |
50395 |
| Interface type |
PCIe v1.1 (2.5 GT/s) |
| Supported data transfer rates |
10/100/1000 Mbit/s |
| Compliance industry standards |
802.3z |
| Minimum system requirements |
Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS |
| Cable type |
Category-5 up to 100m |
| Speed & slot width |
2.5 GT/s, x1 Lane |
| Low halogen options available |
No |
| Status |
Launched |
| Product brief URL |
http://www.intel.com/Assets/PDF/prodbrief/319831.pdf |
| Network interface card type |
Desktop |
| Network interface card cable medium |
Copper |
| Market segment |
Desktop |
| Launch date |
Q3'08 |
| Last change |
63903513 |
| Product family |
Intel Gigabit desktop adapter |
| Product series |
Intel Gigabit CT |
| Product codename |
Shelter Island |
| Harmonized System (HS) code |
8517620090 |
| Export Control Classification Number (ECCN) |
5A991 |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Controller type |
Intel 82574L |
| Cabling type |
Category-5 up to 100m |
| Bracket height |
Low-Profile (LP) / Full-Height (FH) |
