Description

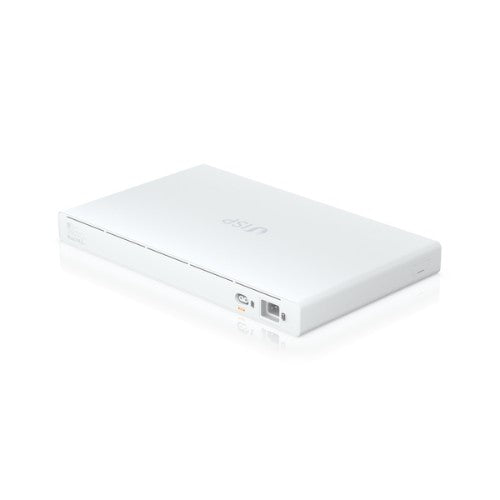

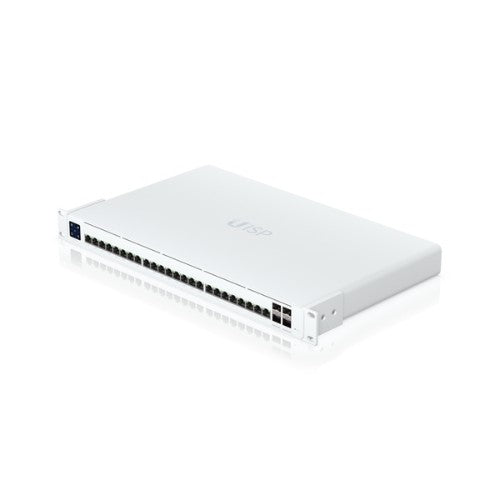

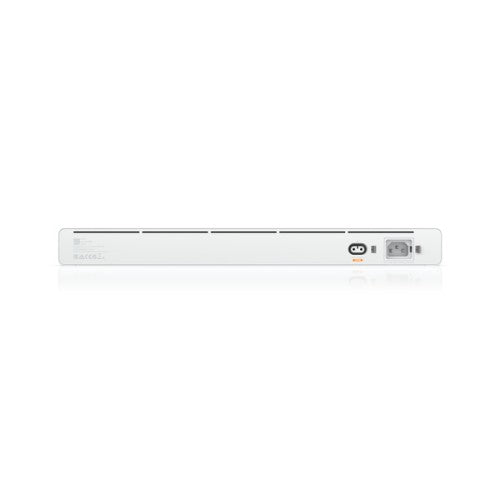

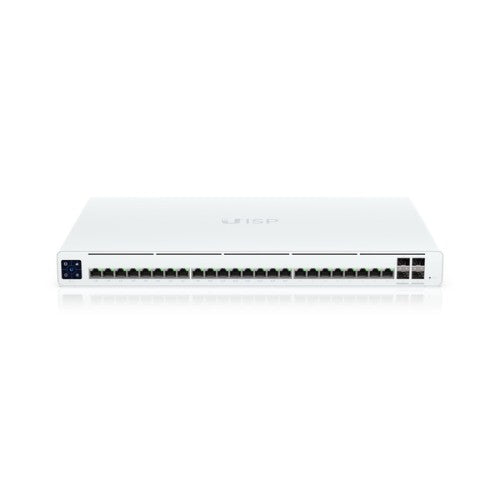

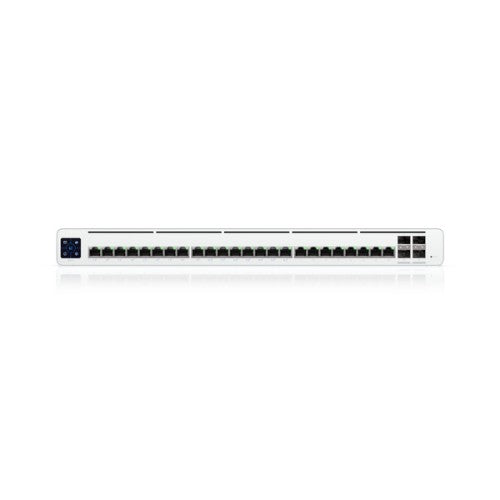

UISP Switch Pro, 1.3" LCM, 24x GbE RJ45, 4x 10G SFP+
Key Features
- (24) GbE RJ45 ports, including (16) with 27V passive PoE output
- (4) 10G SFP+ ports
- 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
- 1.3" LCM color touchscreen
- Easy Bluetooth setup with the UISP Mobile app
Description
A 24-port, Layer 2 PoE switch designed for ISP networks.Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Over-the-air bluetooth access | Yes |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| Throughput | 64 Gbit/s |
| Design | |
| Display type | LCM |
| Product colour | White |
| Stackable | No |
| LED indicators | Activity, Link, PoE, Speed |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| Rack mounting | Yes |
| Certification | IC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 18 - 27 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 220 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 27 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 267.5 mm |
| Height | 43.7 mm |
| Weight | 4 kg |
| Packaging content | |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Performance | |
| Stackable | No |
| Technical details | |
| Product colour | White |
| Stackable | No |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certificates | |
| Certification | IC |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Indication | |
| LED indicators | Activity, Link, PoE, Speed |
| Packaging data | |
| Manual | Yes |
