Description
CMOS, 1/2.7, 2592x1944, Color 0.19 lux, B/W 0 lux, IP66, IP67
Key Features
- 2*5 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors
Description

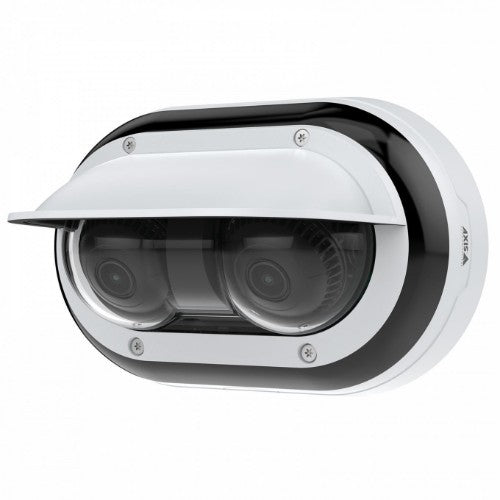

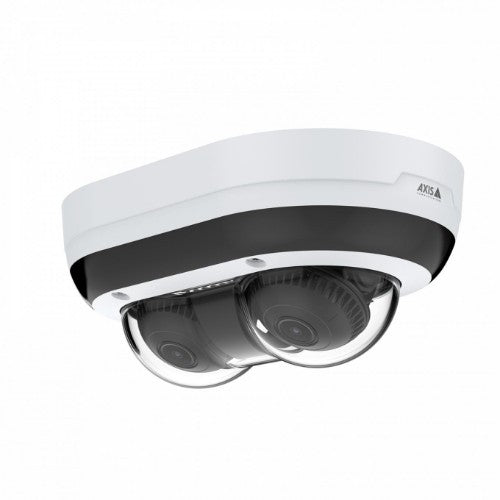

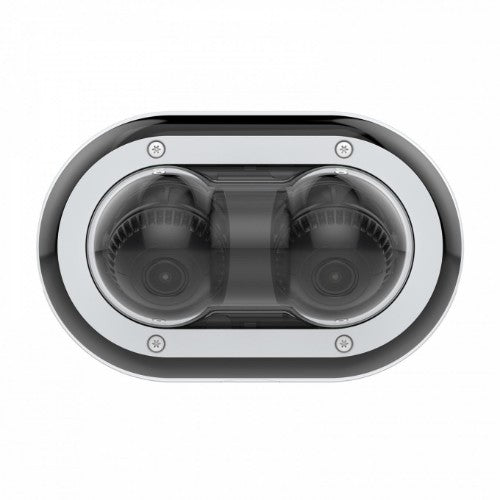

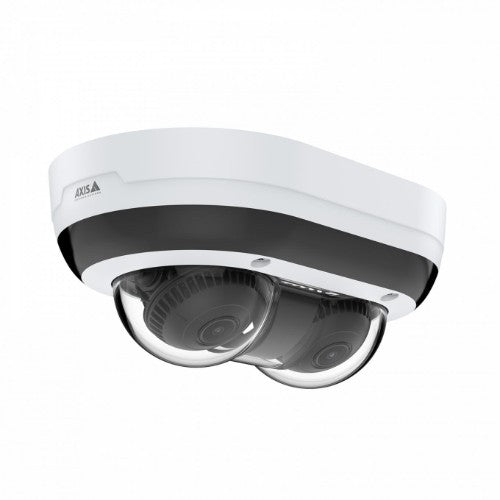

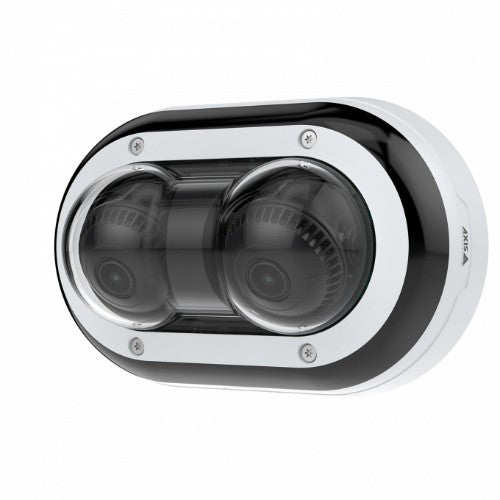

This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Bulb |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Camera | |
| Tilt angle range | -75 - 75° |
| Pan range | -100 - 110° |
| Angle of rotation | 170° |
| Camera shutter speed | 1/33500 - 1/5 s |
| Lens viewing angle, horizontal | 98 - 36° |
| Lens viewing angle, vertical | 69 - 27° |
| Lens viewing angle, diagonal | 133 - 46° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Optical sensor size (panoramic camera) | 25.4 / 2.7 mm (1 / 2.7") |
| Camera shutter speed (panoramic camera) | 1/33500 - 1/5 s |
| Minimum illumination (panoramic camera) | 0.19 lx |
| Focal length range (panoramic camera) | 3.26 - 8.12 mm |
| Lens system | |
| Number of lenses | 1 |
| Auto focus | Yes |
| Zoom capability | Yes |
| Focal length range | 3.26 - 8.12 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2592 x 1944 pixels |
| Supported graphics resolutions | 2560 x 1440, 2592 x 1944 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2.5 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Live view | Yes |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | HTTPS |
| IP address filtering | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 133 mm |
| Depth | 208 mm |
| Height | 88 mm |
| Weight | 975 g |
| Packaging content | |
| Number of cameras | 2 |
| Technical details | |
| Doesn't contain | BFR, PVC |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Doesn't contain | BFR, PVC |
