Description

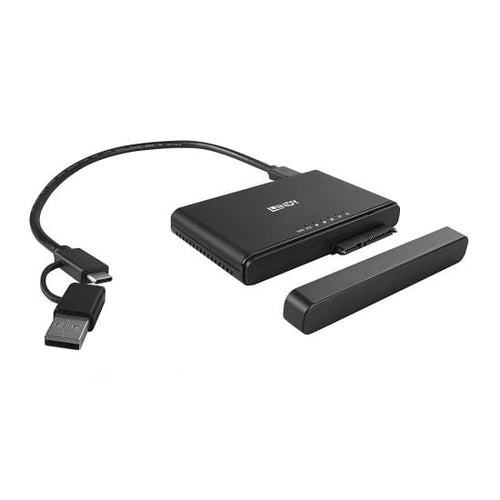

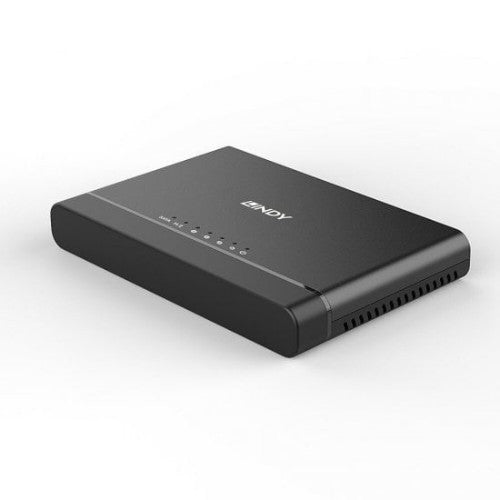

USB 3.2 Type C to M.2 NVMe andSATA SSD Clone Station
This Docking and Clone Station is an ideal tool for system installers and integrators, computer technicians and IT departments for quick backups or data recovery. It makes bit by bit clones (including Operating System and partitions) of the source disk onto the target disk, making it perfect for upgrading to larger capacity and different SSDs.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- Allows fast and simultaneous access to an M.2 NVMe and a SATA SSD/HDD
- Features Offline Cloning from an M.2 NVMe SSD to a 2.5” or 3.5” SATA SSD or HDD as well as the other way round
- Supports USB 3.2 Gen 2 SuperSpeed data rates up to 10Gbps
- Compatible with USB Type C or A equipped computers
Description
The Lindy USB 3.2 Gen 2 Type C M.2 NVMe and SATA SSD/HDD Docking and Clone Station features both high speed Docking as well as Clone functions. It supports simultaneous reading and writing to an M.2 NVMe SSD and a SATA SSD/HDD as well as Offline Cloning (copying data without connection to a host computer) from an M.2 NVMe SSD to a 2.5andrdquo; or 3.5andrdquo; SATA SSD or HDD as well as the other way round.This Docking and Clone Station is an ideal tool for system installers and integrators, computer technicians and IT departments for quick backups or data recovery. It makes bit by bit clones (including Operating System and partitions) of the source disk onto the target disk, making it perfect for upgrading to larger capacity and different SSDs.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Hard drive | |
|---|---|
| Storage media type | SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Technical details | |
| Package width | 160 mm |
| Package height | 100 mm |
| Product colour | Black |
| Material | Aluminium, Plastic |
| Chipset | JMS581D |
| Features | |
| Product colour | Black |
| Material | Aluminium, Plastic |
| Certification | CE, FCC, RoHS, REACH, CP65 |
| Chipset | JMS581D |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 67.5 mm |
| Height | 14.5 mm |
| Weight | 260 g |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH, CP65 |
| Packaging content | |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Package depth | 110 mm |
| Package width | 160 mm |
| Package height | 100 mm |
| Package weight | 390 g |
