Description
10W PoE Adapter RJ45 IEEE802.3af to USB-C
designed based on the IEEE802 .3af standard.
The output is a standard Type-C interface, which can provide 5V/2A power supply.
MC-POEADAPTER-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use. The input and output of the device do not exceed the safe voltage of 57V, and there is no need for electric shock protection.
The product has passed the EU CE certification.

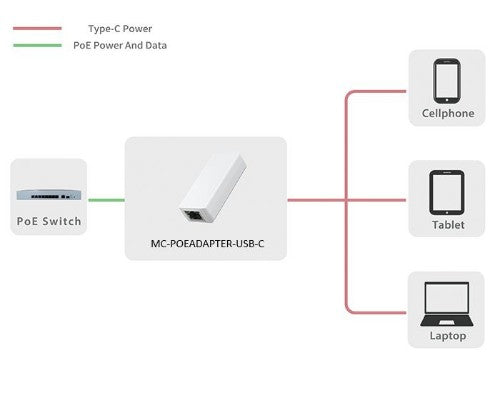

The device needs to be used in a wired network environment that supports IEEE802.3af, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply to low-power mobile devices such as mobile phones, game consoles and tablet computers.
Key Features
- CE Certified
- Output up to 5V 2.0A
- LED Light indicators
- 10/100Mbps speed
Description
MC-POEADAPTER-USB-C is a network power adapterdesigned based on the IEEE802 .3af standard.
The output is a standard Type-C interface, which can provide 5V/2A power supply.
MC-POEADAPTER-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use. The input and output of the device do not exceed the safe voltage of 57V, and there is no need for electric shock protection.
The product has passed the EU CE certification.
The device needs to be used in a wired network environment that supports IEEE802.3af, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply to low-power mobile devices such as mobile phones, game consoles and tablet computers.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet interface type | Fast Ethernet |
| Cable types supported | Cat5 |
| Power over Ethernet (PoE) voltage | 5 V |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Plastic |
| International Protection (IP) code | IP40 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Yes |
| Fast charging | Yes |
| Networking standards | IEEE 802.3at |
| Country of origin | China |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| USB Type-C ports quantity | 1 |
| Power | |
| Output power | 22 W |
| Output current | 2 A |
| Power over Ethernet (PoE) voltage | 5 V |
| Input voltage | 44-57 V |
| Certificates | |
| Compliance certificates | CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Weight | 38 g |
| Width | 29 mm |
| Depth | 17 mm |
| Height | 65 mm |
| Package weight | 50 g |
| Packaging data | |
| Package weight | 50 g |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating altitude | 0 - 2000 m |
| Input voltage | 44-57 V |
| Ethernet interface type | Fast Ethernet |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Country of origin | China |
