Description
60W PoE adapter IEEE802.3AF, USB C

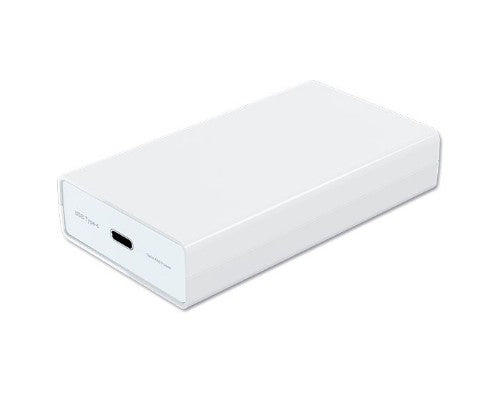

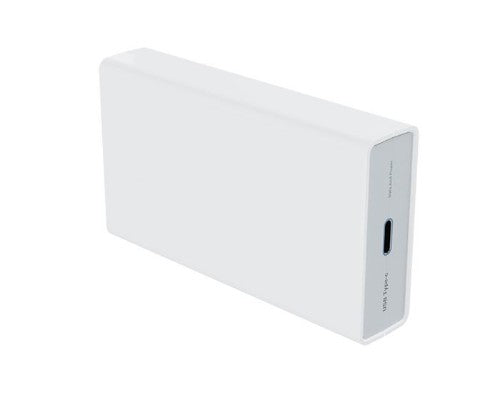

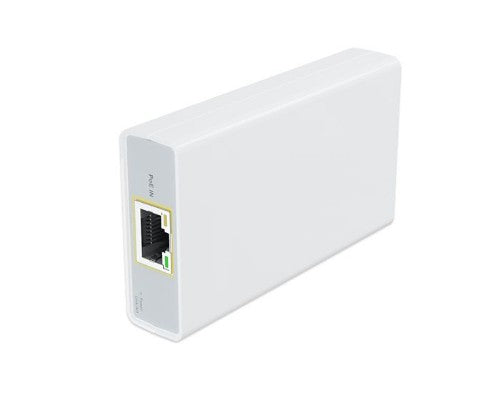

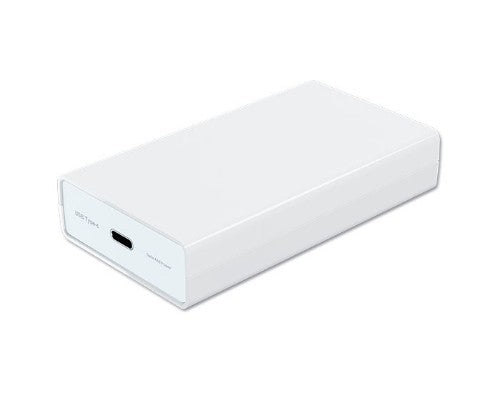

MC-POEADAPTER-60W-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use.
The input and output of the device do not exceed the safe voltage of 57V, and there is no
need for electric shock protection. The product has passed the EU CE certification.

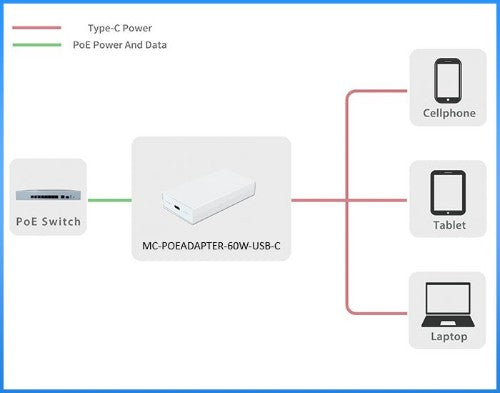

The device needs to be used in a wired network environment that supports IEEE802.3bt, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.
Description
MC-POEADAPTER-60W-USB-C is a network power adapter designed based on the IEEE802 .3at standard. The output is a standard Type-C interface, which can provide 5V/3A 9V/3A 12V/3A 15V/3A 20V/3A power supply and 100Mbps Internet data transmission.MC-POEADAPTER-60W-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use.
The input and output of the device do not exceed the safe voltage of 57V, and there is no
need for electric shock protection. The product has passed the EU CE certification.
The device needs to be used in a wired network environment that supports IEEE802.3bt, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100 |
| Cable types supported | Cat5 |
| Power over Ethernet (PoE) voltage | 20 V |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | White |
| Networking standards | IEEE 802.3at |
| Country of origin | China |
| LED indicators | Yes |
| Housing material | Plastic |
| International Protection (IP) code | IP40 |
| USB Power Delivery revision | 2.0 |
| USB Power Delivery | Yes |
| Fast charging | Yes |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| USB Type-C ports quantity | 1 |
| Power | |
| Output power | 60 W |
| Output current | 2 A |
| Power over Ethernet (PoE) voltage | 20 V |
| Input voltage | 44-57 V |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating altitude | 0 - 2000 m |
| Input voltage | 44-57 V |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Package weight | 150 g |
| Weight | 129 g |
| Width | 100 mm |
| Depth | 60 mm |
| Height | 22 mm |
| Packaging data | |
| Package weight | 150 g |
| Indication | |
| LED indicators | Yes |
