Description

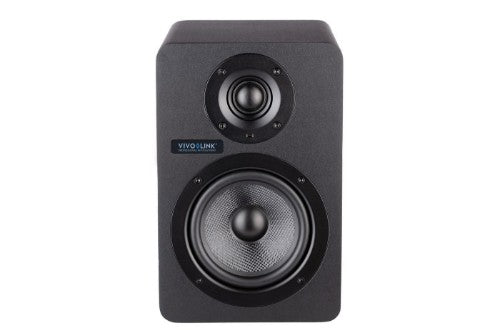

Vivolink Studio 70 Active Speaker
Note: One speaker, not two.
Typical usage:
- Luxurious board rooms
- Sport bars
- Home theater
Key Features
- 2-way bi amplified studio grade speaker
- Woofer 5.25" fiberglass cone
- Tweeter 1" neodymium soft dome
- Frequency Responce: 55Hz-20kHz
- Input XLR (3pin), 1/4" TSR 10Kohm balanced/unbalanced
- Shielding Magnetic Shielded
Description
Vivolink Studio 70 is a two way, bi−amplified studio grade speaker that delivers crystal clear and detailed sound for high−end installations. The XLR balanced input and Jack input opens up for many types of installations and usage.Note: One speaker, not two.
Typical usage:
- Luxurious board rooms
- Sport bars
- Home theater
Specifications
| Loudspeakers | |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Tabletop/bookshelf |
| Number of drivers | 2 |
| Amplifier | Built-in |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer diameter (imperial) | 13.3 cm (5.25") |
| Tweeter diameter | 2.54 cm |
| Woofer diameter | 13.3 cm |
| Recommended usage | Stage |
| Audio output channels | 1.0 channels |
| Audio | |
| Peak Music Power Output (PMPO) | 70 W |
| Frequency range | 55 - 20000 Hz |
| RMS rated power | 50 W |
| Performance | |
| On/off switch | Yes |
| Product colour | Black |
| Magnetically shielded | Yes |
| Housing material | MDF |
| Volume control | Rotary |
| Certification | CE |
| Recommended usage | Stage |
| Technical details | |
| Speaker type | 2-way |
| Product colour | Black |
| Magnetically shielded | Yes |
| Volume control | Rotary |
| Certification | CE |
| Front speaker frequency range | 45 - 20000 Hz |
| Housing colour | Black |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour | Black |
| Housing material | MDF |
| Certification | CE |
| Amplifier | |
| Number of amplifier channels | 1 channels |
| Amplifier | Built-in |
| Amplifier output power | 50 W |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Connector(s) | XLR (3pin) and 6.35 mm (1⁄4-inch) Jack balanced/unbalanced |
| Bluetooth | No |
| 6.35 mm (1⁄4-inch) input | 1 |
| Management features | |
| On/off switch | Yes |
| Power | |
| AC input voltage | 230 - 240 V |
| Power source type | AC |
| Material | |
| Housing material | MDF |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 220 mm |
| Height | 270 mm |
| Weight | 4.2 kg |
| Package weight | 4.21 kg |
| Packaging data | |
| Package weight | 4.21 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Features | |
| Front speaker frequency range | 45 - 20000 Hz |
| Housing colour | Black |
| Other features | |
| Front speaker frequency range | 45 - 20000 Hz |
| Housing colour | Black |
| Number of amplifier channels | 1 channels |
| Magnetically shielded | Yes |
| Bluetooth | No |
| Audio output channels | 1.0 channels |
