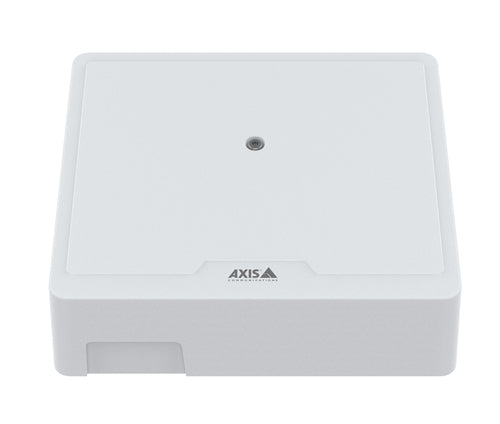

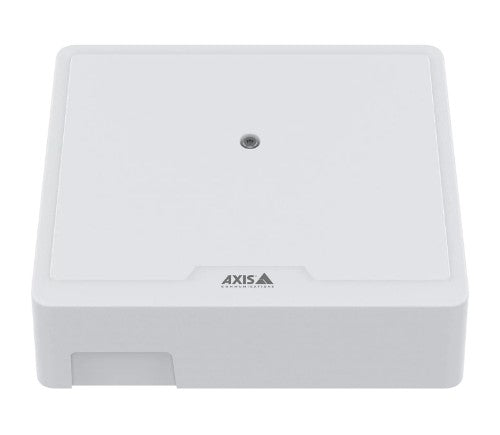

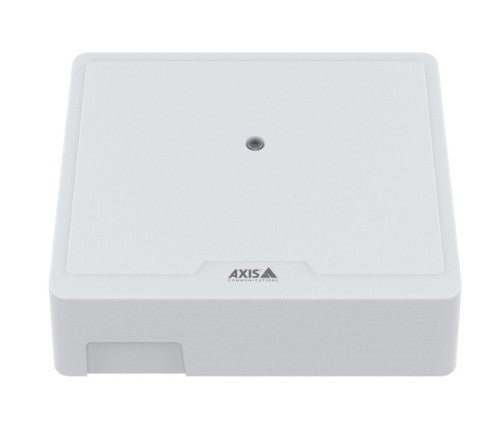

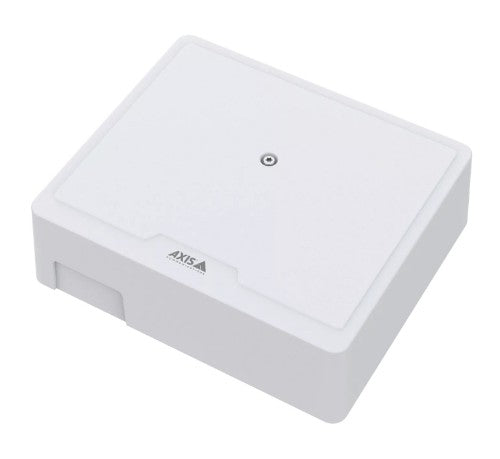

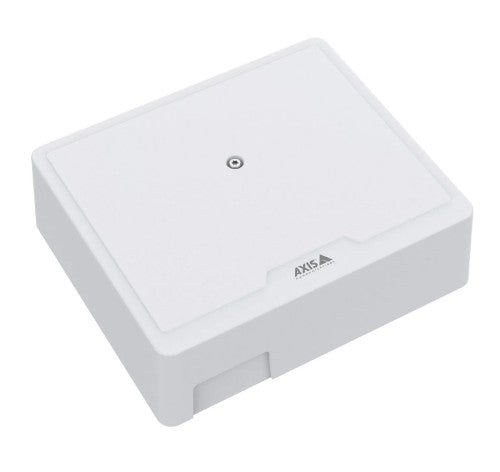

A1210 Network Door Controller
Key Features
- Built-in cybersecurity features; Compact form factor; Complete control for one door; Fully integrated within Axis end-to-end solutions; Intelligence on the edge
Description
Suitable for installation anywhere, this compact, competitively priced product offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. It includes everything needed to control one door all powered by one PoE cable. With intelligence on the edge, it can internally handle all tasks related to door access—even if the network is down. Fully integrated within Axis end-to-end solutions, this scalable product is optimized for both small and large installations and supports flexible authentication using different types of credentials. Furthermore, with built-in cybersecurity features, it prevents unauthorized access and safeguards your system.
Specifications
| Technical details |
|---|
| Maximum number of doors |
1 door(s) |
| Case design |
Housing |
| Supported network protocols |
IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog |
| Performance |
|---|
| Internal memory |
0.512 GB |
| Internal storage capacity |
2 GB |
| Storage media |
Flash |
| Ethernet LAN |
Yes |
| Number of built-in relays |
1 |
| Certification |
UL 2043
UL294
EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2,
EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A,
VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B,
KC KN35
IEC/EN/UL 62368-1, UL 294, UL 2043
Environment
NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2,
IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,
IEC 60068-2-78
CSA C22.2 No. 205-1983 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wiegand interface |
Yes |
| Alarm input channels |
7 |
| Power |
|---|
| DC voltage range |
11.5 - 12.5 V |
| Operating voltage |
12 V |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
144 mm |
| Weight |
645 g |
| Height |
50 mm |
| Depth |
122 mm |
