Vivolink VLUSBCEXT151 KVM extender Transmitter & receiver

USB-C 4K KVM Extender over HDBT3.0

Key Features

• Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.
• USB-C input supports 4K@60Hz 4:4:4 HDR10+
• USB-C 100W charge port
• 4K@30Hz 70m transmission 18Gbit uncompressed
• 3 x USB + 1 x USB-C supporting USB 2.0 transfer speed up to 300Mbps
• Supports bi-direction 24V PoC power supply
• HDCP 2.3 compatible
• Support Dolby Vison and HDR10+

Description

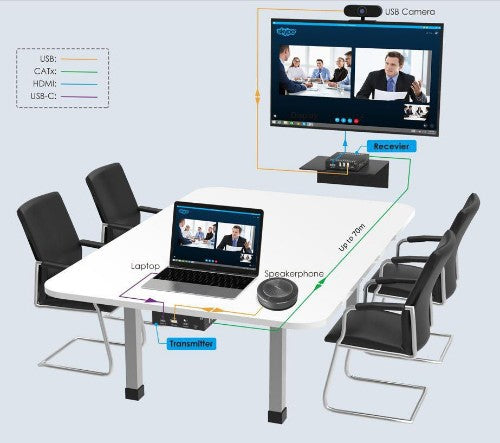

The VLUSBCEXT151 is an USB-C extender kit that can be used for meeting rooms with both screen and USB devices like cameras. HDBaseT 3.0 support the the highest performing long distance video distribution solution in the AV market. It allows one USB-C channel to be transmitted over distances of up to 70m at 4K@30Hz (40m 4K@60Hz) 4:4:4 via CAT6a cable using the latest HDBaseT VS3000 chipset

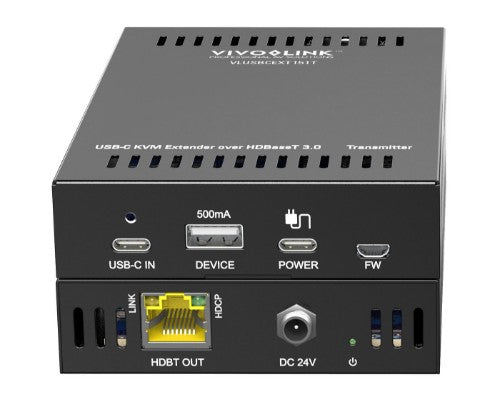

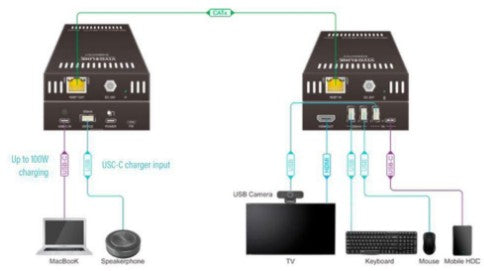

Transmitter unit has USB-C input for Laptop and 100W charge port (charger is not included in the package but you can connect any USB-C charger for laptop here) + USB-A connection for example desk speaker microphone. HDBaseT output to receiver unit and support 100m lenght of CAT6A cable

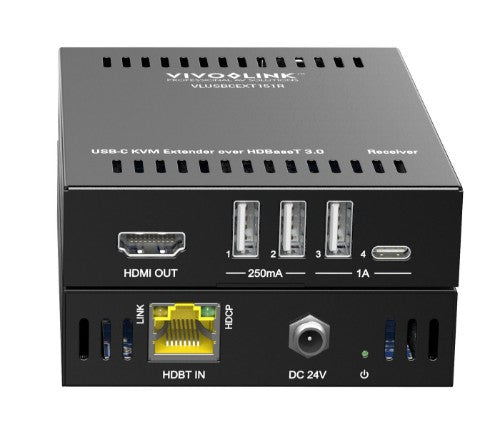

Receiver unit have HDMI 4K output for screen and 4 USB 2.0 inputs for devices at the screen side, like PTZ camera, soundbar and USB touch plate from screen.
Support following formats: DisplayLink, DP Alt mode, DisplayPort

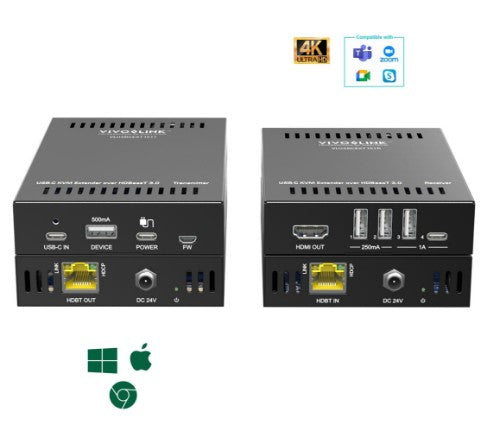

The USB-C extender Kit includes one transmitter with USB-C input for Laptop and a receiver for the screen. There is one power supply that can be mounted at the transmitter or receiver.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	70 m
Cable types supported	Cat6a
Product colour	Black
Material	Metal
Easy to install	Yes
Plug and Play	Yes
USB 2.0 ports quantity	4
LED indicators	Link
Audio support	Yes
Supported resolutions	4K@60Hz 4:4:4
Maximum refresh rate	60 Hz
Supported video modes	2160p
Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Yes
Transmitter local keyboard/mouse port type	USB
Number of displays supported	1
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Ports & interfaces
USB 2.0 ports quantity	4
USB port type	USB Type A/USB Type-C
RJ-45 ports quantity	1
HDMI version	2.0b
Power
AC input voltage	100 - 240 V
AC adapter output voltage	24 V
AC adapter output current	1.25 A
Power consumption (transmitter) (max)	30 W
Power consumption (receiver) (max)	18.2 W
DC-in jack	Yes
DC voltage	24 V
Weight & dimensions
Transmitter width	9 cm
Transmitter depth	14 cm
Transmitter height	2.4 cm
Transmitter weight	285 g
Receiver width	9 cm
Receiver depth	12 cm
Receiver height	2.4 cm
Receiver weight	250 g
Package width	183 mm
Package depth	161 mm
Package height	128 mm
Package weight	820 g
Packaging data
Package width	183 mm
Package depth	161 mm
Package height	128 mm
Package weight	820 g
AC adapter included	Yes
Manual	Yes
Quick installation guide	Yes
Packaging content
AC adapter included	Yes
Manual	Yes
Quick installation guide	Yes
Mounting bracket(s) included	Yes
Included power plug types	EU
Operational conditions
Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Other features
Supported video modes	2160p
Technical details
Weight	500 g
Video in	USB-C
Dimensions (WxDxH)	90 x 21.7 x 120 mm
