Description
StarTech.com 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit

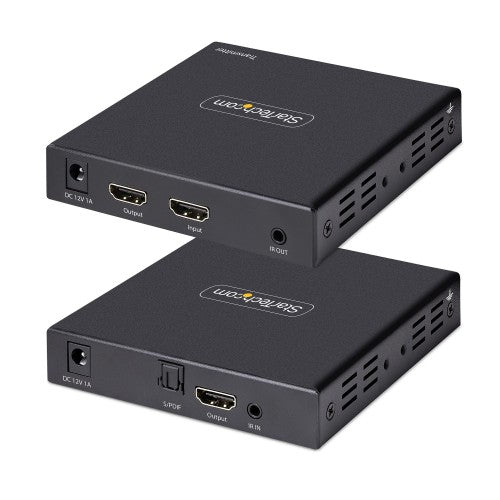

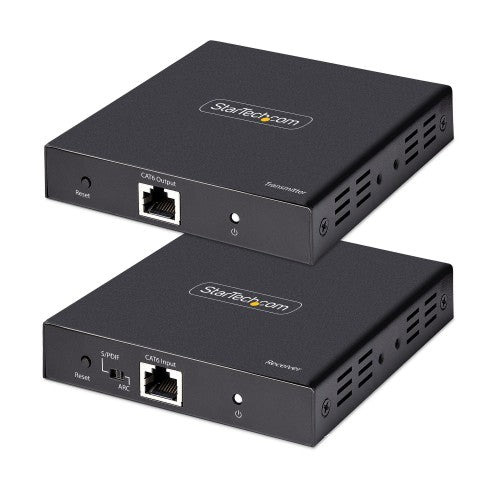

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.

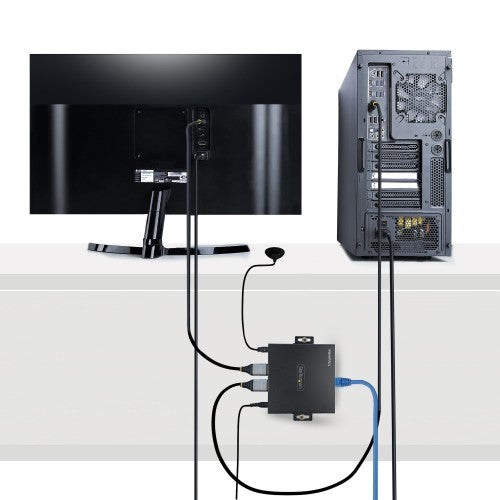

Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Description
Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60HzThis HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Plug and Play | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| LED indicators | Yes |
| Product colour | Black |
| Rubber feet | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Plug and Play | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| Daisy chain | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |

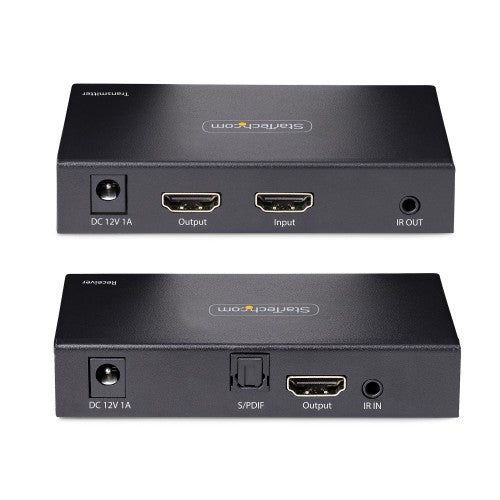

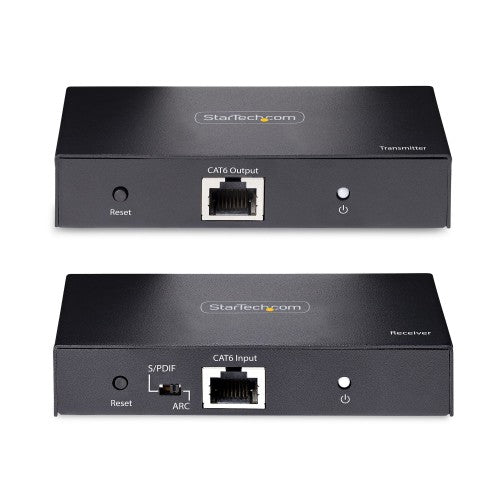

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Digital audio optical out | 1 |
| Power | |
| Input current | 0.3 A |
| Output current | 1 A |
| Power plug type | Type M |
| Operating voltage (transmitter) | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 0.1 W |
| External power adapter | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 99 mm |
| Package depth | 176 mm |
| Height | 26 mm |
| Depth | 106 mm |
| Package width | 240 mm |
| Package height | 80 mm |
| Weight | 210 g |
| Package weight | 900 g |
| Packaging data | |
| Package depth | 176 mm |
| Package width | 240 mm |
| Package height | 80 mm |
| Package weight | 900 g |
| Packaging content | |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 10 pc(s) |
