Description

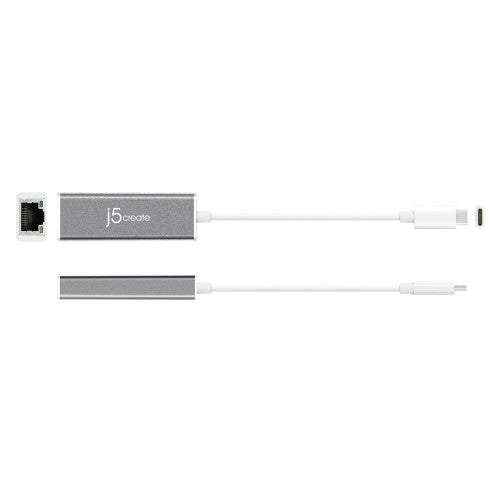

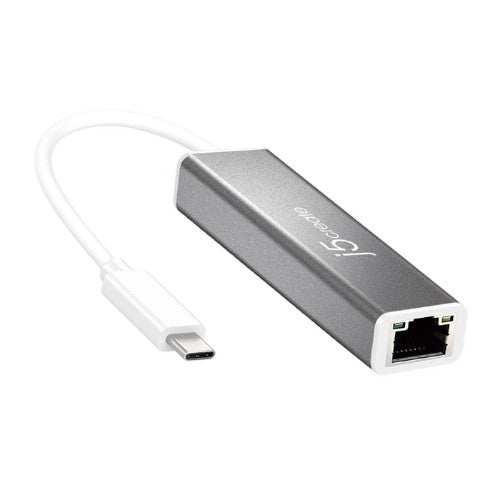

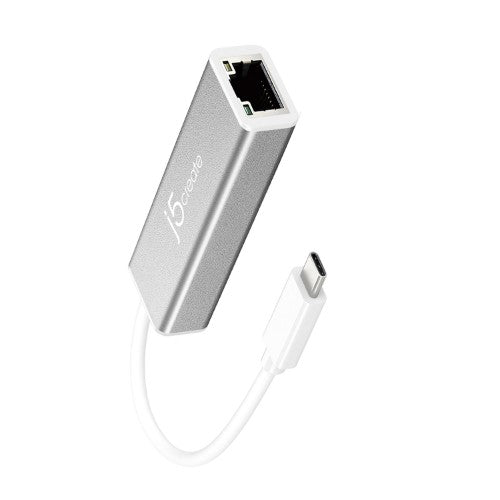

JCE133G USB-C to Gigabit Ethernet Adapter, Grey and White
Key Features
- USB-C™ Male and RJ-45 Female Port
- Supports 10/100/1000 BASE-T
- Supports Wake-on-Lan (WOL) function
- Supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet (EEE)
- Reduce CPU Loading, Microsoft® NDIS5, NDIS6 Checksum Offload Engine (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Description

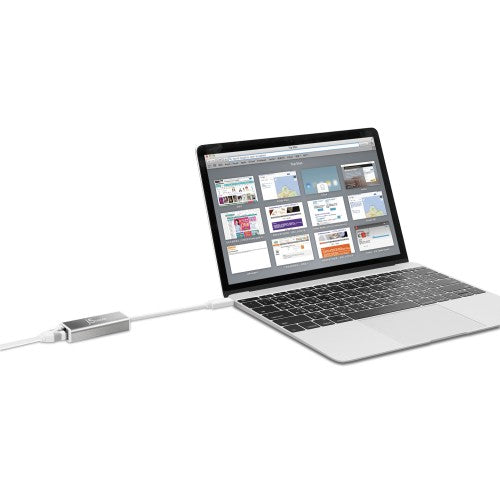

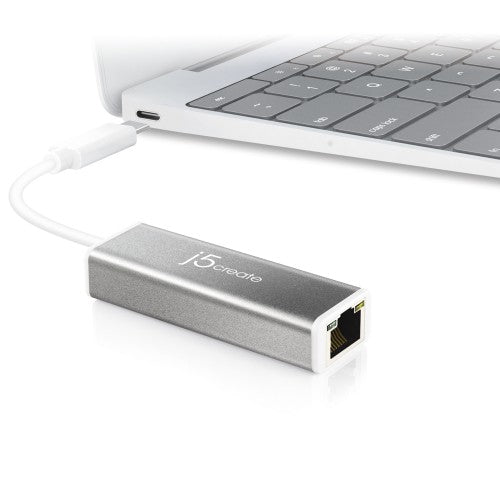

j5create’s JCE133G is a simple, one-piece external adapter that plugs into the USB-C™ port on your Ultrabook™ or MacBook®. The JCE133G is the ultimate solution if you do not have an Ethernet port or if you just want to increase your speed. The elegantly designed JCE133G uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance. The JCE133G allows you to add networking capabilities to a computer without them through a Wi-Fi connection.Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Country of origin | Taiwan |
| Product colour | Grey, White |
| Plug and Play | Yes |
| LED indicators | Activity, Link |
| Data transfer rate | 5 Gbit/s |
| Housing material | Aluminium |
| Technical details | |
| Product colour | Grey, White |
| Plug and Play | Yes |
| Maximum operating temperature | 40 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Data transfer rate | 5 Gbit/s |
| Cable length | 0.1 m |
| Master (outer) case GTIN (EAN/UPC) | 24712795083563 |
| Warranty period | 2 year(s) |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case gross weight | 2.14 kg |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 145 mm |
| Power | |
| Power consumption (typical) | 0.9 W |
| Output voltage | 5 V |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Indication | |
| LED indicators | Activity, Link |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 33.4 g |
| Width | 68 mm |
| Depth | 14.5 mm |
| Height | 23 mm |
| Package weight | 86 g |
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Design | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Country of origin | Taiwan |
| Product colour | Grey, White |
| LED indicators | Activity, Link |
| Packaging data | |
| Package weight | 86 g |
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Packaging content | |
| Packaging content | 1 x USB Type-C™ to Gigabit Ethernet Adapter, 1 x Quick Installation Guide |
| Cables included | USB |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case gross weight | 2.14 kg |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 145 mm |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features | |
| Maximum operating temperature | 40 °C |
| Interface | Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Compatible operating systems | Windows® 10 Windows Server™ 2016/2012/2008R2/2008 macOS® 10.6 later Linux® Kernel up to 4.15 Chrome OS™ Native Driver Support, no additional driver needed in Windows® 10, macOS® 10.6 later, or Chrome OS™ |
| Cable length | 0.1 m |
