4-Port 10/100Base-TX + 1-Port 100Base-FX Industrial Fast Ethernet Switch

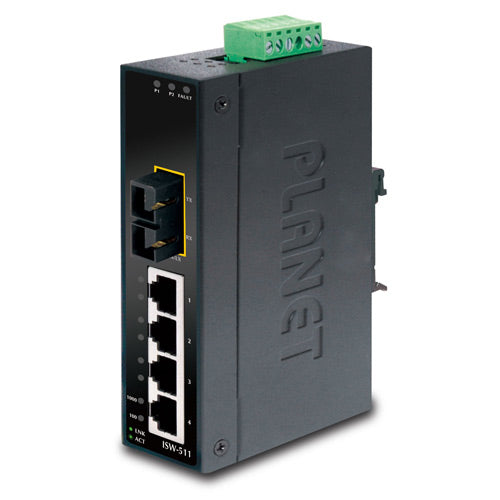

PLANET has released the ISW-511 / ISW-511S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. They each are equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-511 has one 100Base-FX multi-mode SC interface for transmission distance up to 2km, and the ISW-511S15 has one 100Base-FX single-mode SC interface for transmission distance up to 15km. Both of them operate reliably in Heavy Industrial demanding environments. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.
Stable Operating Performance under Difficult Environments
The ISW-511 / ISW-511S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-511 / ISW-511S15 can be placed in almost any difficult environment. The ISW-511 / ISW-511S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch performance
The ISW-511 / ISW-511S15 each provides four 10/100Base-TX Ethernet ports and one 100Base-FX optic-fiber SC interface, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The Flow Control function allows the ISW-511 / ISW-511S15 for fast and reliable data transfer.
All of the RJ-45 copper interfaces in the ISW-511 / ISW-511S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Key Features
- Physical Port
- –4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
- –1-port 100Base-FX interface for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-511
- Layer 2 Features
- –Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
- –Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
- –High performance Store and Forward architecture
- –Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- –Backplane (Switching Fabric): 1Gbps
- –Integrated address look-up engine, support 2K absolute MAC addresses
- –1 Mbit on-chip frame buffer
- –Automatic address learning and address aging
- –CSMA/CD Protocol
- Industrial Case / Installation
- –IP-30 metal case / protection
- –DIN rail and wall mount design
- –12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
- –Supports EFT protection 6000 VDC for power line
- –Supports 6000 VDC Ethernet ESD protection
- –-10 to 60 degrees C operating temperature
Description
New slim type with more practicability and conveniencePLANET has released the ISW-511 / ISW-511S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. They each are equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-511 has one 100Base-FX multi-mode SC interface for transmission distance up to 2km, and the ISW-511S15 has one 100Base-FX single-mode SC interface for transmission distance up to 15km. Both of them operate reliably in Heavy Industrial demanding environments. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.
Stable Operating Performance under Difficult Environments
The ISW-511 / ISW-511S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-511 / ISW-511S15 can be placed in almost any difficult environment. The ISW-511 / ISW-511S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch performance
The ISW-511 / ISW-511S15 each provides four 10/100Base-TX Ethernet ports and one 100Base-FX optic-fiber SC interface, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The Flow Control function allows the ISW-511 / ISW-511S15 for fast and reliable data transfer.
All of the RJ-45 copper interfaces in the ISW-511 / ISW-511S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Fiber ports quantity | 1 |
| Performance | |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Optical fiber | |
| Wavelength | 1300 nm |
| Transmission distance (max) | 2 km |
| RX sensitivity | -34.5 dB |
| Fiber type | Multi-mode |
| Fiber ethernet cabling technology | 100BASE-FX |
| Data transmission | |
| Throughput | 0.74 Mpps |
| MAC address table | 2048 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Certificates | |
| Certification | FCC, CE UL, cUL |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC, CE UL, cUL |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 9.1 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 31 BTU/h |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 97 mm |
| Height | 32 mm |
| Weight | 436 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
