Description

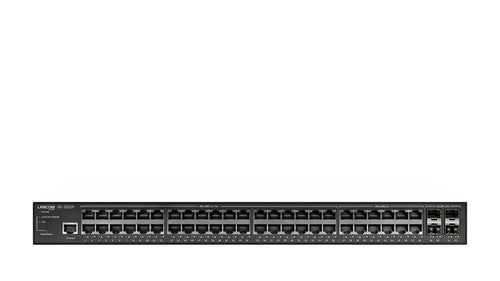

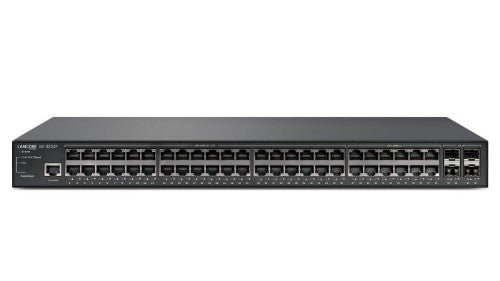

Managed layer 3 lite access switch, 48 Ethernet ports, 36 with PoE+ (max. 370 W) and 4 SFP+ ports (10G), 176 Gbps throughput, IPv6/IPv4, 4,000 active VLANs, QoS, 802.1X, TACACS+, country spec. IEC power cords available
For cost-effective networking of less data-intensive end devices such as IP phones, printers, or PCs, the LANCOM GS-3252P fully managed access switch is ideal. Equipped with PoE+ support on 36 of the 48 Gigabit Ethernet ports, 4 SFP+ ports, and basic layer-3 functions such as static routing and DHCP, this switch offers intelligent management and numerous security features. Orchestrated from the LANCOM Management Cloud, it is configured efficiently and automatically.
Performance and cost optimization on 52 ports
The LANCOM GS-3252P is equipped with 48 Gigabit Ethernet ports and 4 SFP+ ports. With a data throughput of 176 Gbps on the backplane, it offers full performance even at high workloads. The switch thus forms the basis for modern network infrastructures with a large number of end devices with moderate data throughput, such as printers or IP telephones, which need to be integrated.
Central power supply without additional electrical installation
As a high-performance PoE switch, the LANCOM GS-3252P supplies connected PoE end devices without the need for additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) on 36 Ports. With a total PoE power of 370 watts, it is thus ideal for efficient power supply of PoE end devices with moderate power requirements.
Advantages
Static routing for fast data exchange
The LANCOM GS-3252P suports the basic layer-3 function of static routing, shifting certain routing tasks from the router to the switch. The predefinition of network routes through one or more network segments enables faster data exchange, especially in the case of high internal data traffic, and reduces the load on the router. Freed-up router capacity is then additionally available for handling external data traffic. This increases the efficiency of the entire network.
Cloud-managed LAN
The LANCOM Management Cloud opens the way to state-of-the-art switch management: Cloud-managed LAN. The LMC orchestrates the port profiles of all switches and automatically assigns the necessary network configuration, such as VLANs. In this way, all switch configurations are coordinated across sites, taking into account the network architecture, and rolled out or updated simultaneously at the click of a mouse.
DHCP server functionality
As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3252P supports this basic layer-3 function and thus takes over the IP management of the connected network.
Configurable access control
The LANCOM GS-3252P ensures that no unauthorized clients gain access to the network. This is made possible by secure access control on all ports according to IEEE 802.1X (port-based, single-, multi-, and MAC-based).
Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-3252P enables professional remote management of the network. In addition, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. An optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.
IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3252P can be used in IPv4-only, IPv6-only, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping comprise the IPv6 features.
Key Features
- Fully managed access switch with 48x Gigabit Ethernet ports and 4x SFP+ 10G Ports
- Basic layer-3 features like static routing and DHCP server
- PoE support according to IEEE 802.3af/at on 36 of the 48 Gigabit Ethernet ports for efficient power supply of connected devices up to 370 watts
- Power saving function according to IEEE 802.3az – port shutdown when no data is being transmitted
- Security due to configurable access control on all ports according to IEEE 802.1X
- Secure remote management with TACACS+, SSH, SSL, and SNMPv3
- Cloud-managed LAN – for simple and fast configuration via the LANCOM Management Cloud
- 5-year replacement service for all components
Description
Access switch with PoE for cost-effective networkingFor cost-effective networking of less data-intensive end devices such as IP phones, printers, or PCs, the LANCOM GS-3252P fully managed access switch is ideal. Equipped with PoE+ support on 36 of the 48 Gigabit Ethernet ports, 4 SFP+ ports, and basic layer-3 functions such as static routing and DHCP, this switch offers intelligent management and numerous security features. Orchestrated from the LANCOM Management Cloud, it is configured efficiently and automatically.
Performance and cost optimization on 52 ports
The LANCOM GS-3252P is equipped with 48 Gigabit Ethernet ports and 4 SFP+ ports. With a data throughput of 176 Gbps on the backplane, it offers full performance even at high workloads. The switch thus forms the basis for modern network infrastructures with a large number of end devices with moderate data throughput, such as printers or IP telephones, which need to be integrated.
Central power supply without additional electrical installation
As a high-performance PoE switch, the LANCOM GS-3252P supplies connected PoE end devices without the need for additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) on 36 Ports. With a total PoE power of 370 watts, it is thus ideal for efficient power supply of PoE end devices with moderate power requirements.
Advantages
Static routing for fast data exchange
The LANCOM GS-3252P suports the basic layer-3 function of static routing, shifting certain routing tasks from the router to the switch. The predefinition of network routes through one or more network segments enables faster data exchange, especially in the case of high internal data traffic, and reduces the load on the router. Freed-up router capacity is then additionally available for handling external data traffic. This increases the efficiency of the entire network.
Cloud-managed LAN
The LANCOM Management Cloud opens the way to state-of-the-art switch management: Cloud-managed LAN. The LMC orchestrates the port profiles of all switches and automatically assigns the necessary network configuration, such as VLANs. In this way, all switch configurations are coordinated across sites, taking into account the network architecture, and rolled out or updated simultaneously at the click of a mouse.
DHCP server functionality
As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3252P supports this basic layer-3 function and thus takes over the IP management of the connected network.
Configurable access control
The LANCOM GS-3252P ensures that no unauthorized clients gain access to the network. This is made possible by secure access control on all ports according to IEEE 802.1X (port-based, single-, multi-, and MAC-based).
Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-3252P enables professional remote management of the network. In addition, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. An optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.
IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3252P can be used in IPv4-only, IPv6-only, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping comprise the IPv6 features.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Network | |
| Cable length detection | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 10240 |
| Throughput | 77 Mpps |
| Number of static routes | 128 |
| Packet buffer memory | 4 MB |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4093 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| IGMP proxy | Yes |
| DHCP features | DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Country of origin | Taiwan |
| Performance | |
| Noise level | 40 dB |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4 MB |
| Power | |
| Power consumption (max) | 460 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC/PoE |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 36 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 310 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 375 mm |
| Height | 44 mm |
| Weight | 5.5 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| Mounting brackets included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 40 dB |
| Housing material | Metal |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Other features | |
| Country of origin | Taiwan |
| Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 85176200 |
