Description

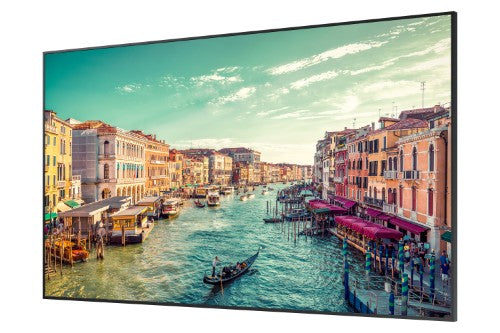

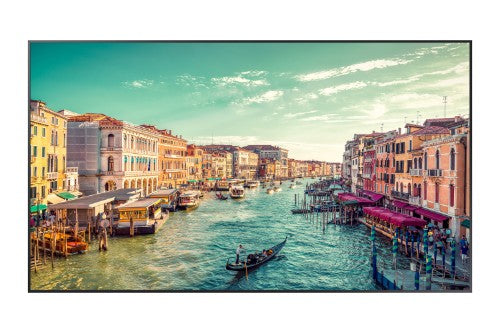

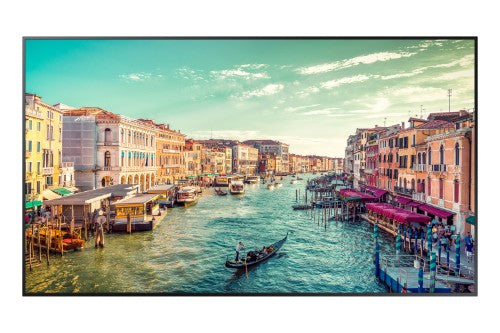

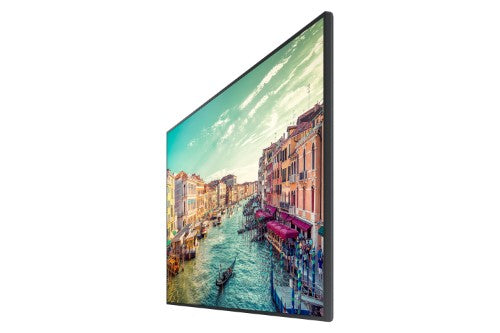

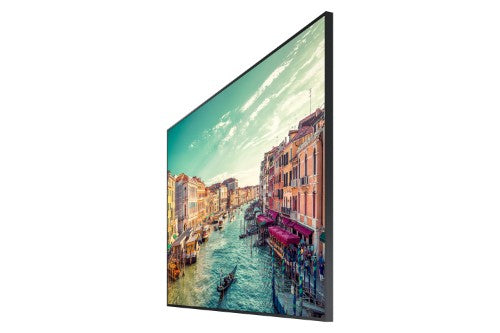

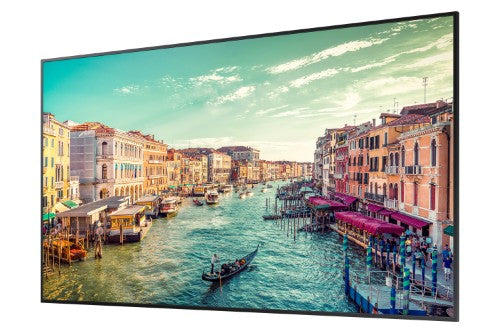

Samsung QM85R-BD, Digital signage flat panel, 2.16 m (85"), LCD, 3840 x 2160 pixels, Wi-Fi
Description
Samsung QM85R-BD. Product design: Digital signage flat panel. Display diagonal: 2.16 m (85"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating system installed: Tizen 4.0. Product colour: BlackSpecifications
| Display | |
|---|---|
| Panel type | VA |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Touchscreen | No |
| Display technology | LCD |
| Colour gamut | 92% |
| Display diagonal | 2.16 m (85") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.4875 x 0.4875 mm |
| Vertical scan range | 48 - 75 Hz |
| Horizontal scan range | 30 - 81 kHz |
| Haze rate | 28% |
| RGB colour space | DCI-P3 |
| Pixel frequency (max) | 594 MHz |

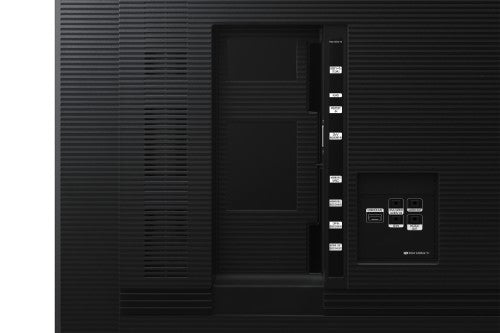

| Ports & interfaces | |
| Remote (IR) input | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| Infrared data port | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB ports quantity | 2 |
| HDMI input ports quantity | 2 |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Bezel width (top) | 1.09 cm |
| Bezel width (side) | 1.09 cm |
| Bezel width (bottom) | 1.29 cm |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Certification | Class A 60950-1, 62368-1 |
| VESA mounting | Yes |
| Screen shape | Flat |
| Bezel colour | Charcoal Black |
| Performance | |
| Purpose | Universal |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (sleep) | 0.5 W |
| Power consumption (typical) | 308 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | Tizen 4.0 |
| Built-in processor | Yes |
| Weight & dimensions | |
| Display width | 1897.8 mm |
| Display depth | 56.7 mm |
| Display height | 1080.8 mm |
| Display weight | 48.4 kg |
| Packaging data | |
| Package width | 2090 mm |
| Package depth | 260 mm |
| Package height | 1247 mm |
| Package weight | 63.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class A 60950-1, 62368-1 |
| Technical details | |
| VESA mounting | Yes |
| Panel type | VA |
| DisplayPort version | 1.2 |
| RJ-45 input ports | 1 |
| Video out | Yes |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Audio out (mini jack) | 1 |
| Thin Client | |
| Operating system installed | Tizen 4.0 |
| Other features | |
| Panel type | VA |
| DisplayPort version | 1.2 |
| RJ-45 input ports | 1 |
| Video out | Yes |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Wi-Fi | Yes |
| Flash memory | 8000 MB |
| Display technology | LCD |
| Bezel width (top) | 1.09 cm |
| Bezel width (side) | 1.09 cm |
| Bezel width (bottom) | 1.29 cm |
| Audio input | Yes |
| Optional features | WMN8200SG |
