Samsung OH46B-S, Digital signage flat panel, 116.8 cm (46"), LCD, 1920 x 1080 pixels, 24/7
Description
Samsung OH46B-S. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: Tizen 6.5. Product colour: Black
Specifications
| Display |
|---|
| Panel type |
VA |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Touchscreen |
No |
| Display technology |
LCD |
| Colour gamut |
72% |
| Display diagonal |
116.8 cm (46") |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
3500 cd/m² |
| HD type |
Full HD |
| Response time |
6 ms |
| Contrast ratio (typical) |
6000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.53 x 0.53 mm |
| Vertical scan range |
24 - 75 Hz |
| Horizontal scan range |
15 - 135 kHz |
| RGB colour space |
NTSC |
| Glass thickness |
5 mm |
| Glass film |
AG/AR Film |

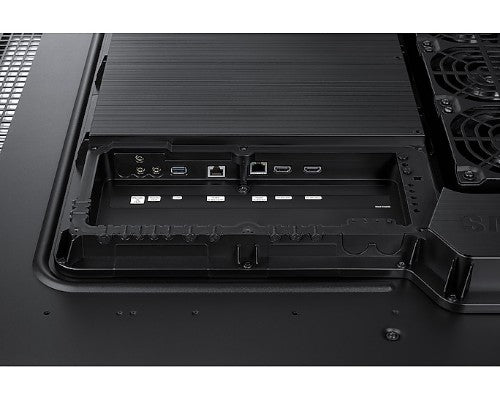

| Ports & interfaces |
|---|
| USB port |
Yes |
| HDMI version |
2.0 |
| Wi-Fi |
No |
| DisplayPorts quantity |
0 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232 interface |
Yes |
| USB ports quantity |
1 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
2.49 cm |
| Bezel width (side) |
2.49 cm |
| Bezel width (bottom) |
2.49 cm |
| Product colour |
Black |
| Panel mounting interface |
995 x 500 mm |
| Certification |
Class A
60950-1, 62368-1 |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
No |
| Power |
|---|
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
430 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Computer system |
|---|
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Operating system installed |
Tizen 6.5 |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display width |
1069 mm |
| Display depth |
85 mm |
| Display height |
623.6 mm |
| Display weight |
36 kg |
| Packaging data |
|---|
| Package width |
1156 mm |
| Package depth |
200 mm |
| Package height |
713 mm |
| Package weight |
40.5 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Certificates |
|---|
| Certification |
Class A
60950-1, 62368-1 |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
VA |
| Glass protection |
Yes |
| Thin Client |
|---|
| Operating system installed |
Tizen 6.5 |
| Other features |
|---|
| Panel type |
VA |
| Glass protection |
Yes |
| Wi-Fi |
No |
| Flash memory |
8000 MB |
| Display technology |
LCD |
| Bezel width (top) |
2.49 cm |
| Bezel width (side) |
2.49 cm |
| Bezel width (bottom) |
2.49 cm |
