F2105-RE Standard Sensor, 8 pcs
Key Features
- Excellent 108° field of view; IP66/IP67/IP6K9K-rated; Rugged sensor unit; Up to 180 fps at 720p; Up to 60 fps at 1080p
Description

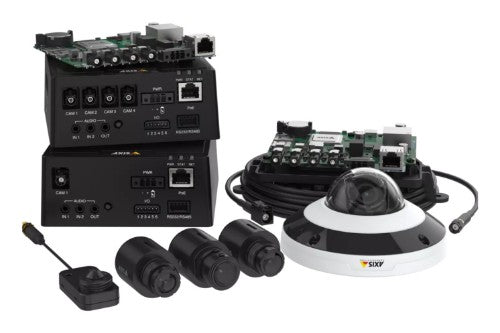

AXIS F2105-RE offers 1080p at 60 fps or 720p at 180 fps with AXIS F9111, an excellent 108° field of view, and good low-light performance in color. It uses cables (up to 30 m/ 98 ft) from Axis with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. Based on a divided network camera concept, it offers discreet installation and only a small sensor visible externally. Reliable under rough conditions, this ruggedized sensor unit can withstand temperatures as low as -40 °C and as high as 70 °C intermittently (-40 °F to 158 °F).
Specifications
| Features |
|---|
| Protection features |
Dust resistant, Water resistant |
| Brand compatibility |
Axis |
| Compatibility |
F9104-B
F9111
F9114
F9114-B |
| Type |
Sensor unit |
| Placement supported |
Universal |
| Product colour |
Black |
| International Protection (IP) code |
IP66, IP67, IP6K9K, IP69 |
| Lens mount interface |
M12 |
| Sensor type |
CMOS |
| Focal length range |
3.1 mm |
| F-number (relative aperture) |
2 |
| Viewing angle, horizontal |
108° |
| Viewing angle, vertical |
58° |
| Resolution |
1920 x 1080 pixels |
| Image sensor |
|---|
| Lens mount interface |
M12 |
| Sensor type |
CMOS |
| Focal length range |
3.1 mm |
| F-number (relative aperture) |
2 |
| Viewing angle, horizontal |
108° |
| Viewing angle, vertical |
58° |
| Resolution |
1920 x 1080 pixels |
| Power |
|---|
| Power consumption (typical) |
1 W |
| Power consumption (max) |
4 W |
| Technical details |
|---|
| Protection features |
Dust resistant, Water resistant |
| Compatibility |
F9104-B
F9111
F9114
F9114-B |
| Type |
Sensor unit |
| Placement supported |
Universal |
| International Protection (IP) code |
IP66, IP67, IP6K9K, IP69 |
| Colour |
|---|
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
8 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
