Description
CMOS 1/2.9, WDR, 0.03 lux, Full HD 1920 x 1080, 30 fps, HDMI, 3.16 mm, 153 g
Key Features
- Built-in privacy features; Day-and-night with IR illumination; HDMI output; PIR sensor for motion detection; Two-way audio communication
Description

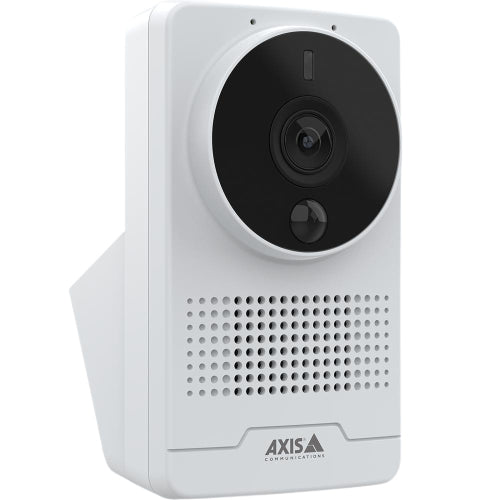

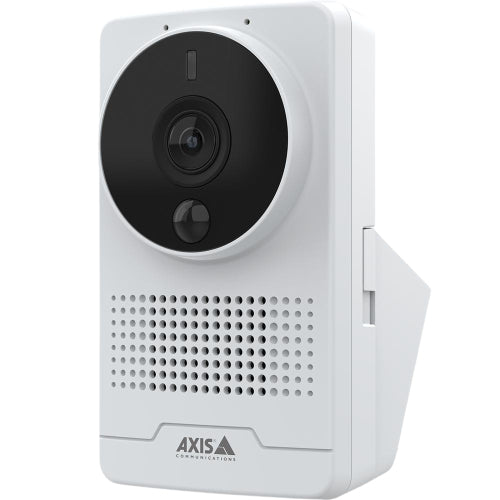

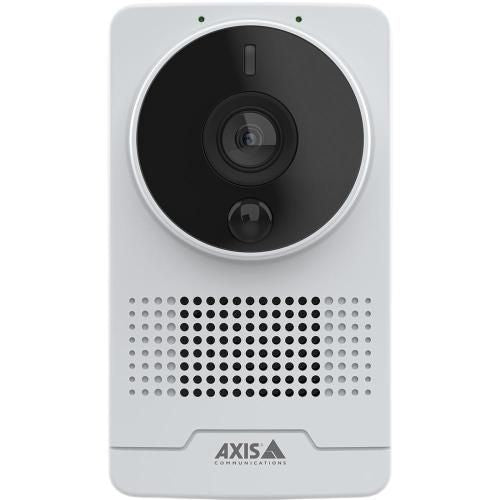

AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Optional wireless kit available.Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 62471 (exempt) Network NIST SP500-267 |
| Design | |
| Form factor | Box |
| Product colour | White |
| Mounting type | Wall |
| Housing material | Aluminium, Plastic |
| Camera | |
| Minimum illumination | 0.03 lx |
| Camera shutter speed | 1/19000 - 1/5 s |
| Lens viewing angle, horizontal | 103° |
| Lens viewing angle, vertical | 55° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Lens system | |
| Focal length range | 3.16 mm |
| Fixed focal length | 2 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system full duplex | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | EAP-TLS, TLS |
| HTTPS encryption | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 5.4 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 62471 (exempt) Network NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 93 mm |
| Depth | 60 mm |
| Height | 105 mm |
| Weight | 153 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, MPEG4 |
