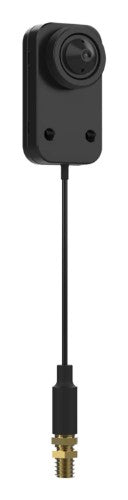

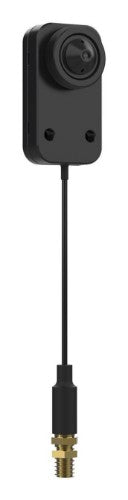

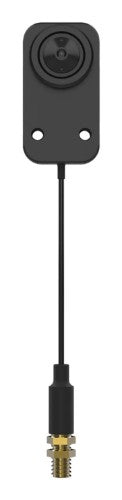

F7225-RE Pinhole Sensor
Key Features
- 97º horizontal field of view; Extremely discreet design; Forensic WDR; Up to 180 fps at 720p; Up to 60 fps at 1080p
Description

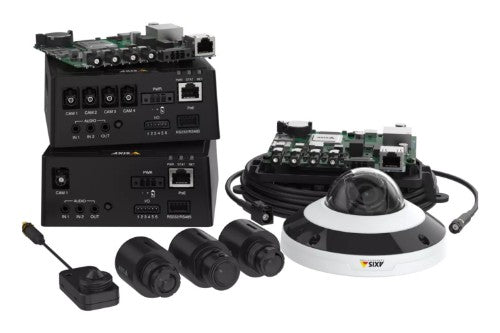

Ideal for integration in tight spaces such as machines or ATMs, this extremely discreet sensor is designed for use with AXIS F91 main units to ensure lower installation and configuration costs. It supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. When used with AXIS F9111 main unit, it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. This IP66-/IP67-rated sensor supports a wide temperature range. Furthermore, it offers a 97º field of view for wide area coverage.
Specifications
| Features |
|---|
| Protection features |
Dust resistant, Water resistant |
| Brand compatibility |
Axis |
| Compatibility |
F9104-B
F9111
F9114
F9114-B |
| Type |
Sensor unit |
| Placement supported |
Universal |
| Product colour |
Black |
| International Protection (IP) code |
IP66, IP67 |
| Wide Dynamic Range (WDR) |
Yes |
| Lens mount interface |
M12 |
| Sensor type |
CMOS |
| Focal length range |
3.7 mm |
| F-number (relative aperture) |
2.5 |
| Viewing angle, horizontal |
92° |
| Viewing angle, vertical |
45° |
| Resolution |
1920 x 1200 pixels |
| Image sensor |
|---|
| Lens mount interface |
M12 |
| Sensor type |
CMOS |
| Focal length range |
3.7 mm |
| F-number (relative aperture) |
2.5 |
| Viewing angle, horizontal |
92° |
| Viewing angle, vertical |
45° |
| Resolution |
1920 x 1200 pixels |
| Technical details |
|---|
| Protection features |
Dust resistant, Water resistant |
| Compatibility |
F9104-B
F9111
F9114
F9114-B |
| Type |
Sensor unit |
| Placement supported |
Universal |
| International Protection (IP) code |
IP66, IP67 |
| Colour |
|---|
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 55 °C |
