Description

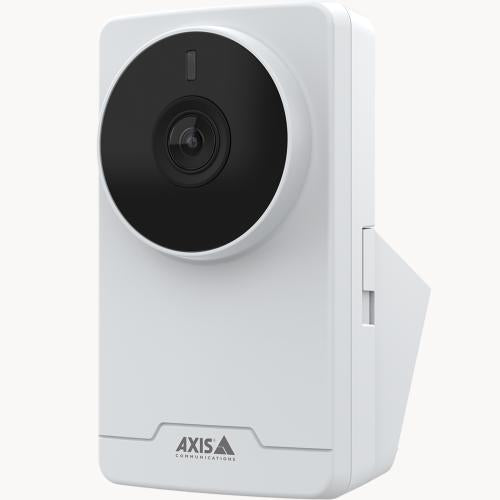

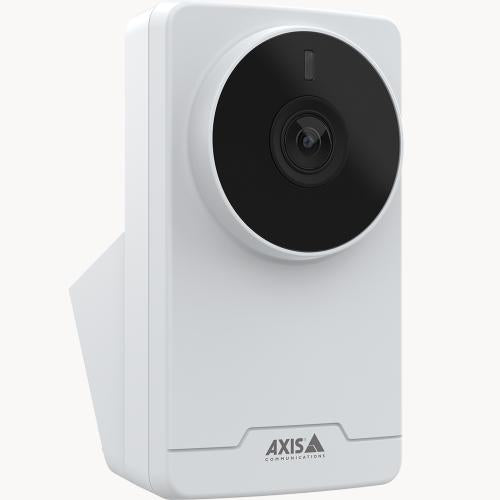

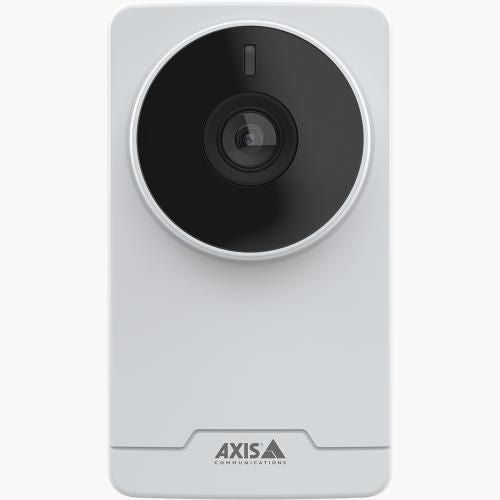

M1055-L BOX CAMERA
Key Features
- AXIS Object Analytics preinstalled; Built-in privacy features; Day-and-night with IR illumination; I/O port with 1 input/1 output
Description
Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your networkSpecifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| Form factor | Box |
| Product colour | White |
| Mounting type | Ceiling/wall |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| Camera | |
| Minimum illumination | 0.03 lx |
| Camera shutter speed | 1/19000 s |
| Lens viewing angle, horizontal | 103° |
| Lens viewing angle, vertical | 55° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Fixed focal length | 3.16 mm |
| Night vision | |
| Night vision | Yes |
| Video | |
| Image quality adjustment | Brightness, Colour depth, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Network | |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQTT v3.1.1, Syslog, Link-Local-Adresse (ZeroConf) |
| Storage | |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | EAP-TLS, HTTPS, SNMP |
| IP address filtering | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 4.3 W |
| Power consumption (Power over Ethernet (PoE)) | 4.3 W |
| Power consumption (typical) | 2.2 W |
| DC output voltage | 12 |
| DC output current | 2.5 A |
| Certificates | |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 93 mm |
| Height | 105 mm |
| Weight | 137 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
