Description
8x RJ-45, L2, 16 Gbps switching capacity, DC
Key Features
- (4) GbE PoE+, (4) GbE ports
- 52W total PoE availability
- Wall mountable
Description
An 8-port, Layer 2 PoE switch supporting silent fanless cooling.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Power | |

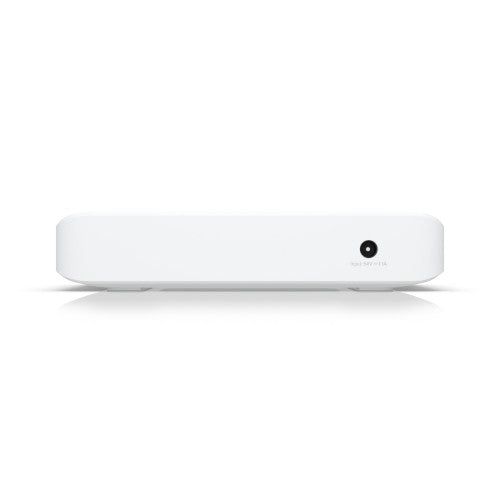

| Power connector | DC-in jack |
| Power consumption (max) | 8 W |
| Power supply included | Yes |
| Input current | 1.1 A |
| DC input voltage | 54 V |
| Power source | DC |
| Technical details | |
| Product colour | White |
| Housing material | Plastic |
| Rack mounting | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| 10G support | No |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Throughput | 8 Gbit/s |
| Certificates | |
| Certification | CE, FCC, IC |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | White |
| LED indicators | LAN, PoE, System |
| Housing material | Plastic |
| Certification | CE, FCC, IC |
| Rack mounting | No |
| Performance | |
| Fanless | Yes |
| Indication | |
| LED indicators | LAN, PoE, System |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 52 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 163.7 mm |
| Depth | 99.6 mm |
| Height | 31.7 mm |
| Weight | 295 g |
| Packaging data | |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
