Description
515 nm, 66.6 x 32.7 x 21 mm, 76 g
0C to +50C Operation, Worldwide
Introducing Zebra’s most powerful and versatile wearable scanner — the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there’s a style that will maximize comfort for every user. Use it anywhere — from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery — no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.
Key Features
- Decode session timeout is limited to a maximum of 4 seconds
- At temperatures between -10C and -20C, scanner illumination is decreased and focus ramping is slowed
- At temperatures below -20C, the maximum decode session timeout is reduced to 0.8 seconds
Description

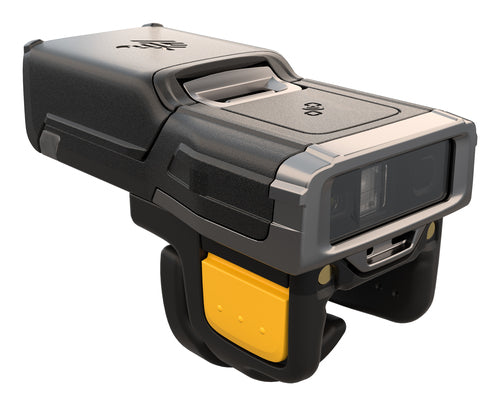

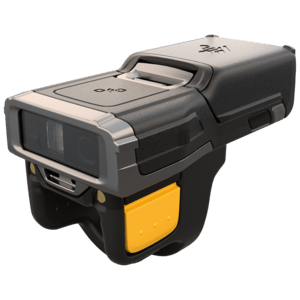

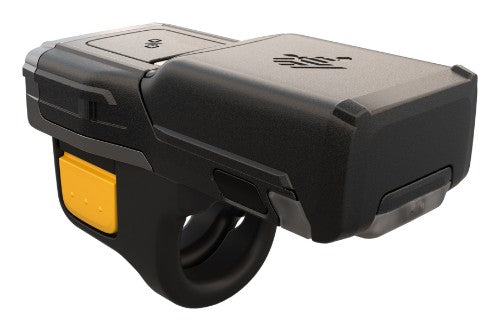

RS6100 Wearable Scanner, SE55, Standard Battery, Single Trigger,0C to +50C Operation, Worldwide
Introducing Zebra’s most powerful and versatile wearable scanner — the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there’s a style that will maximize comfort for every user. Use it anywhere — from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery — no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.
Specifications
| Scanning | |
|---|---|
| Type | Wearable bar code reader |
| Yaw reading angle | 60 - 60° |
| Wavelength | 515 nm |
| Sensor type | LED |
| Scanner type | 2D |
| Pitch reading angle | 60 - 60° |
| Optical sensor resolution (W x H) | 2688 x 1520 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Near Field Communication (NFC) | Yes |
| Performance | |
| Product colour | Grey |
| Design | |
| Type | Wearable bar code reader |
| Product colour | Grey |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 480 mAh |
| Weight & dimensions | |
| Width | 66.6 mm |
| Depth | 32.7 mm |
| Height | 21 mm |
| Weight | 76 g |
| Technical details | |
| Type | Wearable bar code reader |
| Product colour | Grey |
| Warranty period | 1 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
