Wearable Scanner, SE55, No Trigger, No Battery, Worldwide
Description

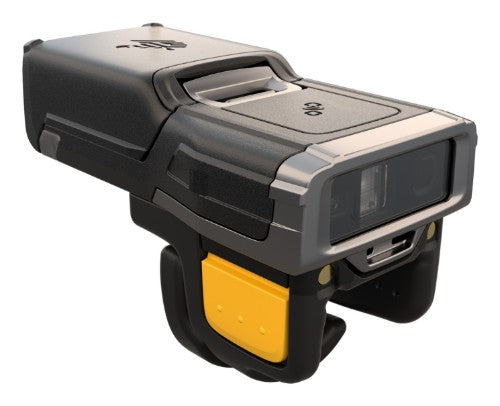

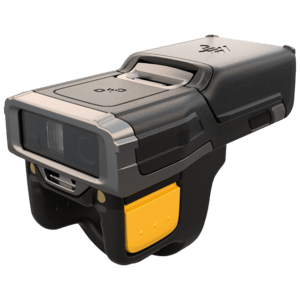

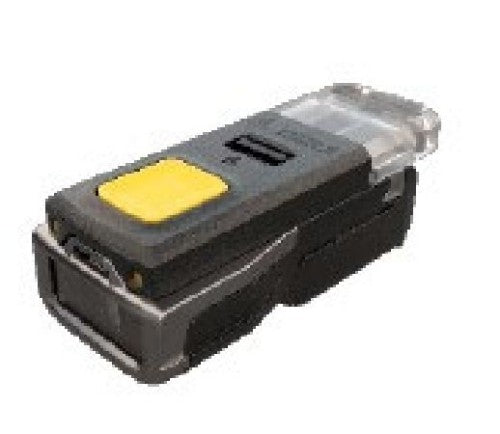

The RS6100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode symbologies. The RS6100 is also compatible with a wide range of mobile computers communicating over Bluetooth.
Specifications
| Scanning |
|---|
| Type |
Wearable bar code reader |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle |
-60 - 60° |
| Wavelength |
515 nm |
| Sensor type |
LED |
| Scanner type |
2D |
| Pitch reading angle |
-60 - 60° |
| Optical sensor resolution (W x H) |
2688 x 1520 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Near Field Communication (NFC) |
Yes |
| Performance |
|---|
| Product colour |
Grey, Yellow |
| Design |
|---|
| Type |
Wearable bar code reader |
| Product colour |
Grey, Yellow |
| Power |
|---|
| Power source type |
Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
735 mAh |
| Weight & dimensions |
|---|
| Width |
66.6 mm |
| Depth |
32.7 mm |
| Height |
21 mm |
| Weight |
76 g |
| Technical details |
|---|
| Type |
Wearable bar code reader |
| Product colour |
Grey, Yellow |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
