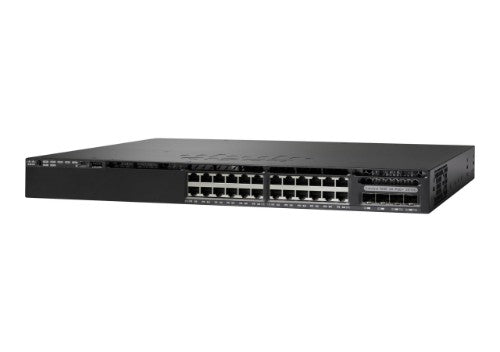

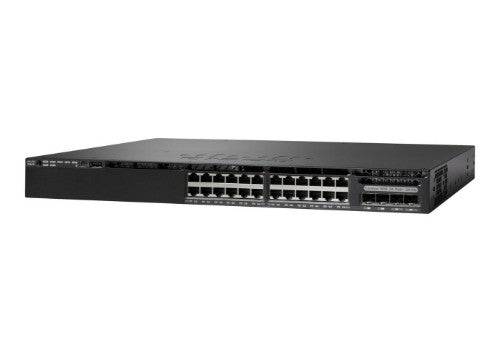

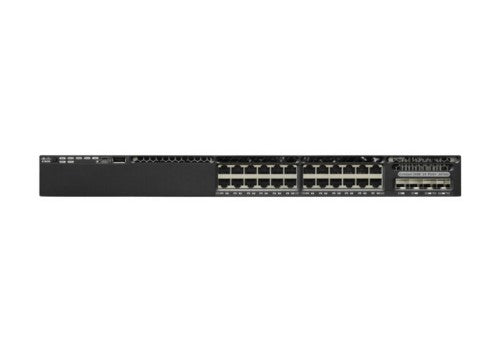

Catalyst 3650-24PS-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, four 1 G Uplinks, 640WAC Power Supply, 1 RU, LAN Base Feature Set, Enhanced Limited Lifetime Warranty (WS-C3650-24PS-L)
Description
The Cisco Catalyst 3650-24PS-L Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Number of VLANs |
4094 |
| Link aggregation |
Yes |
| IP routing |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
32000 entries |
| Switching capacity |
92 Gbit/s |
| Jumbo frames support |
Yes |
| Number of VLANs |
4094 |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Market segment |
Business |
| Country of origin |
China |
| Performance |
|---|
| Noise level |
48 dB |
| Memory type |
DRAM |
| Mean time between failures (MTBF) |
528280 h |
| Internal memory |
4096 MB |
| Flash memory |
2000 MB |
| Stackable |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power plug type |
Type C |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
64.18 W |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
1 |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
390 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating relative humidity (H-H) |
5 - 96% |
| Operating altitude |
0 - 1500 m |
| Non-operating altitude |
0 - 5000 m |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Weight & dimensions |
|---|
| Width |
445 mm |
| Depth |
448 mm |
| Height |
44 mm |
| Weight |
7.26 kg |
| Packaging data |
|---|
| Package width |
520.7 mm |
| Package depth |
546.1 mm |
| Package height |
203.2 mm |
| Package weight |
2.2 kg |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| Noise level |
48 dB |
| Mean time between failures (MTBF) |
528280 h |
| Rack mounting |
Yes |
| Memory |
|---|
| Memory type |
DRAM |
| Internal memory |
4096 MB |
| Flash memory |
2000 MB |
| Indication |
|---|
| LED indicators |
Yes |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
