Description

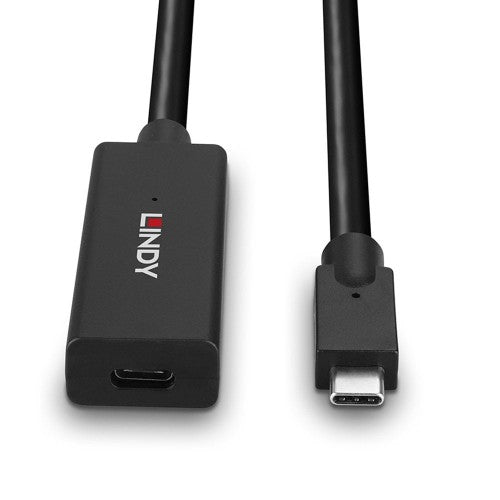

5m USB 3.2 Gen 2 C/C Active Extension
The USB active extension cable also features a DC socket for connecting an external power supply (5V 1A, not included) when using USB peripherals which have higher power requirements.
Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- 5 metre USB 3.2 Active Extension Repeater Lead
- Supports transfer rates up to 10Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
Description
The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps. With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs. Compatible with all USB 3.2 Type C and Thunderbolt 3/4 equipped computers (incl. Apple M1), this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.The USB active extension cable also features a DC socket for connecting an external power supply (5V 1A, not included) when using USB peripherals which have higher power requirements.
Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 5 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Copper |
| Cable jacket material | Acrylonitrile butadiene styrene (ABS) |
| Contact material | Brass |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Maximum data transfer rate | 10 Gbit/s |
| Cable diameter | 7 mm |
| Weight | 320 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Cable length | 5 m |
| Weight | 320 g |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package weight | 350 g |
| Package type | Polybag |
| Packaging data | |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package weight | 350 g |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
