Description

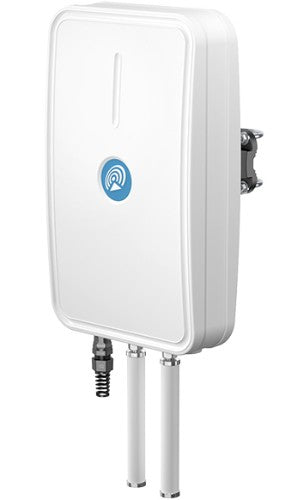

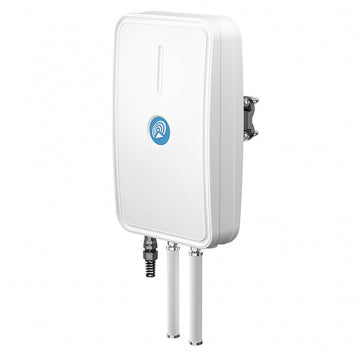

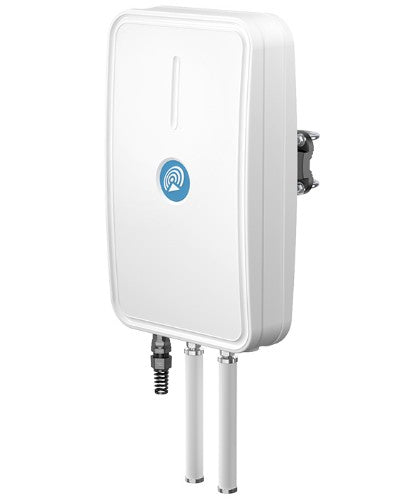

Antenna QuMax Omni for Teltonika RUTX50
QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Apart from 5G, also Wi-Fi and GPS antennas are included, which means you get an all-in-one solution for your RUTX50.

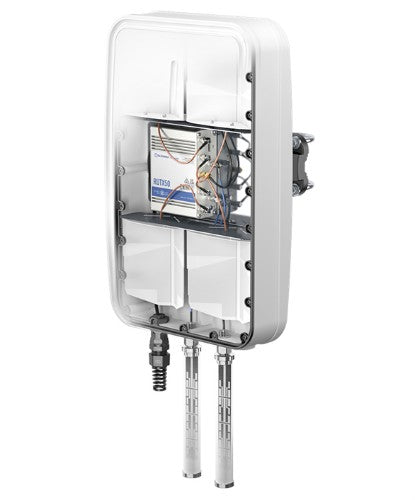

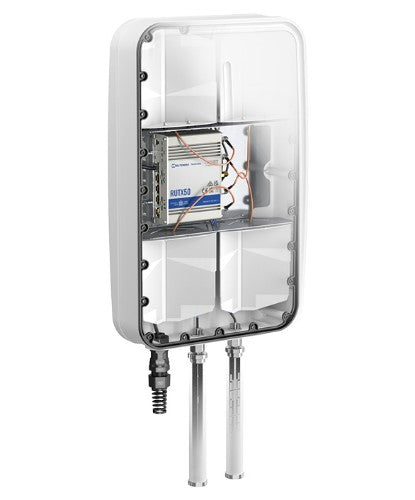

Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.
NOTE! The antenna doesn’t support B 32 band and n 77 above 3800 MHz band!
Description
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + Wi-Fi ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Apart from 5G, also Wi-Fi and GPS antennas are included, which means you get an all-in-one solution for your RUTX50.
Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.
NOTE! The antenna doesn’t support B 32 band and n 77 above 3800 MHz band!
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8; 2.4-2.5/4.7-6 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 3 / 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Waterproof | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Country of origin | Poland |
| International Protection (IP) code | IP67 |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8; 2.4-2.5/4.7-6 |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |

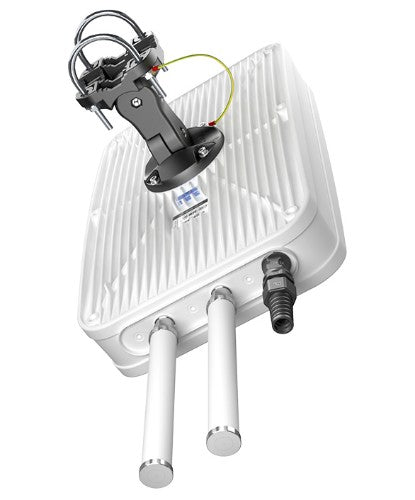

| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 3 / 4 dBi |
| Product colour | White |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX50 |
| Power | |
| Power source type | PoE |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8; 2.4-2.5/4.7-6 |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 3 / 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX50 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Width | 292.2 mm |
| Depth | 105.6 mm |
| Height | 486 mm |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
