Description
3840x2160, 50/60 fps, 1/1.2, PoE, IP66, IP67, IK10
A camera that’s fit for its purpose
Designed and certified for Zone and Division 2 hazardous locations (Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus), this multitasking camera provides many benefits within health and safety applications as well as operational efficiency. For instance, smoke alert analytics monitors for signs of smoke or fire in potentially combustible environments. In operational efficiency applications, it can help increase efficiency, maintain peak operability, and maximize uptime. For instance, you can gain deeper understanding and awareness by creating an advanced data-driven sensory network that integrates with existing sensors and systems.
Deep learning-based analytics run on the edge
Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. For instance, by connecting the camera to the process control system and continuously monitoring a process, you can fine-tune the process in real-time to maximize throughput. Plus, you’ll be able to extract and send metadata, which can be used for trend monitoring and predictive maintenance.
Excellent image quality day or night

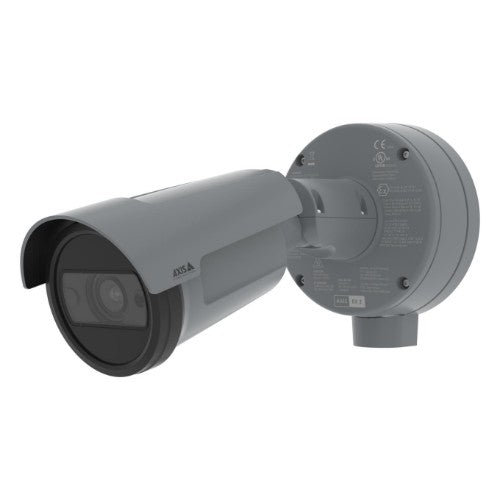

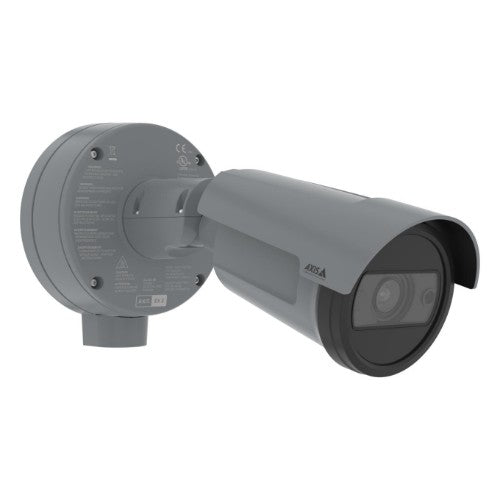

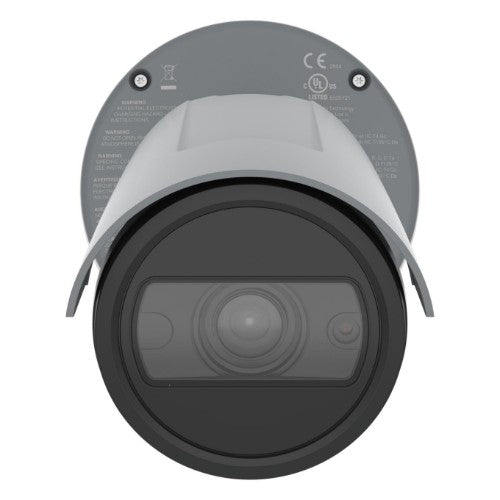

AXIS P1468-XLE offers outstanding 4K resolution at up to 60 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. And, with a large 1/1.2" sensor it ensures great light sensitivity. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. Plus, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Secure and sturdy in hazardous areas
Compact and lightweight in design, this explosion-protected camera is easy to install. It offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this sturdy, impact-resistant camera is IP66/67, NEMA 4X, and IK10-rated for protection against dust, rain, snow, and impacts. Plus, it can withstand winds up to 50 m/s.
Key Features
- Certified for Zone and Division 2
- Deep learning-based analytics
- Excellent video quality with 4K at 60 fps
- Detailed images in any light conditions
- Impact- and weather-resistant
Description
This sturdy 4K camera is the world’s first explosion-protected camera designed for Zone/Division 2. Ideal for health and safety applications as well as operational efficiency, it supports deep-learning based analytics that run on the edge.A camera that’s fit for its purpose
Designed and certified for Zone and Division 2 hazardous locations (Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus), this multitasking camera provides many benefits within health and safety applications as well as operational efficiency. For instance, smoke alert analytics monitors for signs of smoke or fire in potentially combustible environments. In operational efficiency applications, it can help increase efficiency, maintain peak operability, and maximize uptime. For instance, you can gain deeper understanding and awareness by creating an advanced data-driven sensory network that integrates with existing sensors and systems.
Deep learning-based analytics run on the edge
Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. For instance, by connecting the camera to the process control system and continuously monitoring a process, you can fine-tune the process in real-time to maximize throughput. Plus, you’ll be able to extract and send metadata, which can be used for trend monitoring and predictive maintenance.
Excellent image quality day or night
AXIS P1468-XLE offers outstanding 4K resolution at up to 60 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. And, with a large 1/1.2" sensor it ensures great light sensitivity. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. Plus, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Secure and sturdy in hazardous areas
Compact and lightweight in design, this explosion-protected camera is easy to install. It offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this sturdy, impact-resistant camera is IP66/67, NEMA 4X, and IK10-rated for protection against dust, rain, snow, and impacts. Plus, it can withstand winds up to 50 m/s.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A |
| Design | |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | Grey |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.07 lx |
| Camera shutter speed | 1/66500 - 2 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 2.08x |
| Focal length range | 6.2–12.9 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Bit rate | Configurable bit rate |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Audio | |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 7.7 W |
| Certificates | |
| Certification | CE, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 280 mm |
| Diameter | 13.2 cm |
| Weight | 1.2 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drilling template included | Yes |
| Technical details | |
| Doesn't contain | BFR, PVC |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Doesn't contain | BFR, PVC |
