Description

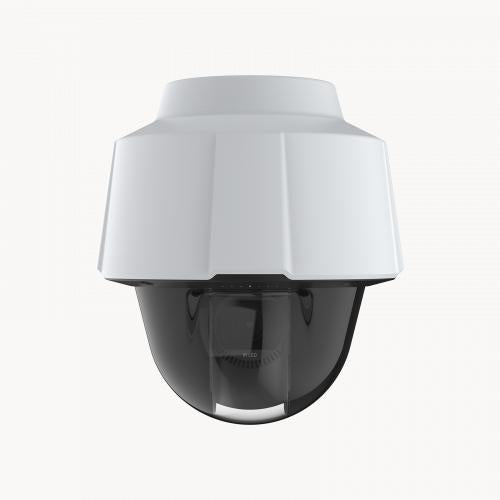

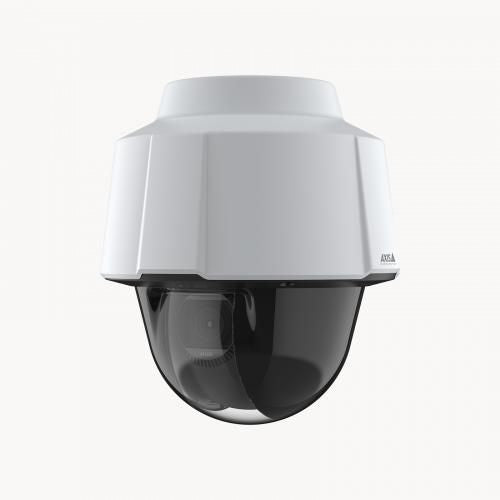

High-performance 4 MP PTZ with IR
Key Features
- 4 MP with 30x optical zoom; Built-in cybersecurity features; Forensic WDR, Lightfinder 2.0, IR Illumination; Support for advanced analytics; Zipstream with support for H.264/H.265
Description
This high-performance PTZ camera offers 4 MP image quality with 30x optical zoom and IR. Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. It offers support for analytics and includes AXIS Object Analytics to detect and classify people and vehicles. This cost-effective camera includes built-in cybersecurity features to safeguard your system and prevent unauthorized access. Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Remote viewing | Yes |
| Processor model | ARTPEC-4 |
| PTZ modes | Preset point |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in processor | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Bulb |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.1 lx |
| Field of view (FOV) angle | 57.1° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/50000 - 1/5 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 57.1° |
| Lens viewing angle, vertical | 34.4° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.5 - 135 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 200 m |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Gain control type | Auto |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC |
| Maximum resolution | 2688 x 1512 pixels |
| Supported graphics resolutions | 2688 x 1512 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Sample rate | 48 kHz |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Live view | Yes |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | E-mail, Text alert message |
| Video motion detection | Yes |
| Security algorithms | 256-bit AES-XTS, FIPS 140-2 |
| IP address filtering | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 12 W |
| DC-in jack | Yes |
| DC output voltage | 10, 24, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 242 mm |
| Diameter | 20.5 cm |
| Weight | 2.5 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC |
