Description

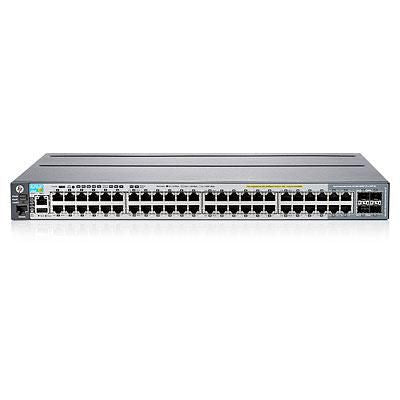

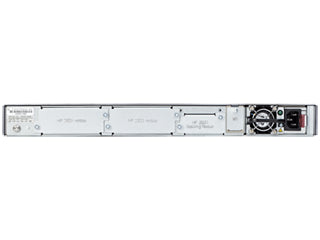

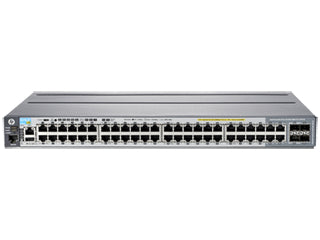

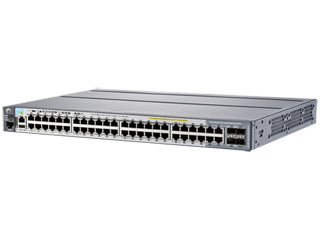

Aruba 2920 48G POE+ Switch, Refurbished
Features
Flexible, Scalable and SDN Optimized Access Layer Switches
- The Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB, and branch office networks.
- Cost-effective, pay-as-you-grow modular stacking support for up to four 10GBASE-T (or SFP+) links and upgradeable power supplies allow your network to quickly scale when needed.
- Robust Basic Layer 3 feature set includes static and RIP routing, Access OSPF routing, ACLs, sFlow, IPv6, and requires no software licensing.
- Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
High Performance and Power at the Edge
- The Aruba 2920 Switch Series is designed with a powerful ProVision ASIC, providing low latency, increased packet buffering, and adaptive power consumption so the network can support the media-rich, bandwidth-intensive applications your business demands.
- Increase performance with selectable queue configurations and associated memory buffering that meet your network application requirements.
- With up to 740 W of internal PoE+ power, the Aruba 2920 Switch Series can easily scale to 1440 Watts with a simple connection to an external power supply (EPS) or redundant power supply (RPS).
- Plug and play stacking with automated failover enhances network resiliency and RPS support delivers power redundancy.
- Efficient 80 PLUS Silver Grade Power Supplies, Energy Efficient Ethernet, and LLDP-MED conserve energy resources. Removable power supplies reduce downtime during upgrades and servicing.
Security and Quality of Service (QoS)You Can Rely on
- The Aruba 2920 Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances and help protect your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, and MAC and Web for greater, policy-driven application security.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Tunneled node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2920 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
- IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic
- LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP): facilitates easy mapping using network management applications with LLDP automated device discovery protocol
- PoE and PoE+ allocations: support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user specified) to allocate and manage PoE/PoE+ power for more efficient energy savings
- IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
- IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 static, dynamic, or distributed trunks active across a stack, with each trunk having up to eight links (ports) per static trunk; support trunking across stack members
- Ring and chain stacking topology: allows failure of a link or switch in the ring of stacked switches, while the remaining connected switches continue operation
Description
The Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. These basic Layer 3 switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. The 2920 supports modular stacking, 10GbE, RIP and Access OSPF routing, Tunneled node, PoE+, ACLs, sFlow, robust QoS and IPv6. It is optimized for Software-defined Networking (SDN) with OpenFlow support.Features
Flexible, Scalable and SDN Optimized Access Layer Switches
- The Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB, and branch office networks.
- Cost-effective, pay-as-you-grow modular stacking support for up to four 10GBASE-T (or SFP+) links and upgradeable power supplies allow your network to quickly scale when needed.
- Robust Basic Layer 3 feature set includes static and RIP routing, Access OSPF routing, ACLs, sFlow, IPv6, and requires no software licensing.
- Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
High Performance and Power at the Edge
- The Aruba 2920 Switch Series is designed with a powerful ProVision ASIC, providing low latency, increased packet buffering, and adaptive power consumption so the network can support the media-rich, bandwidth-intensive applications your business demands.
- Increase performance with selectable queue configurations and associated memory buffering that meet your network application requirements.
- With up to 740 W of internal PoE+ power, the Aruba 2920 Switch Series can easily scale to 1440 Watts with a simple connection to an external power supply (EPS) or redundant power supply (RPS).
- Plug and play stacking with automated failover enhances network resiliency and RPS support delivers power redundancy.
- Efficient 80 PLUS Silver Grade Power Supplies, Energy Efficient Ethernet, and LLDP-MED conserve energy resources. Removable power supplies reduce downtime during upgrades and servicing.
Security and Quality of Service (QoS)You Can Rely on
- The Aruba 2920 Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances and help protect your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, and MAC and Web for greater, policy-driven application security.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Tunneled node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2920 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
- IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic
- LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP): facilitates easy mapping using network management applications with LLDP automated device discovery protocol
- PoE and PoE+ allocations: support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user specified) to allocate and manage PoE/PoE+ power for more efficient energy savings
- IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
- IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 static, dynamic, or distributed trunks active across a stack, with each trunk having up to eight links (ports) per static trunk; support trunking across stack members
- Ring and chain stacking topology: allows failure of a link or switch in the ring of stacked switches, while the remaining connected switches continue operation
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Latency (10-100 Mbps) | 9 µs |
| Latency (1 Gbps) | 3.2 µs |
| Latency (10 Gbps) | 3.2 µs |
| Packet buffer memory | 11.25 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Virtual stacking (units) | 4 |
| Processor frequency | 625 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 1024 MB |
| Built-in processor | Yes |
| Packet buffer memory | 11.25 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 487 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 399 BTU/h |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 336 mm |
| Height | 43.9 mm |
| Weight | 5.7 kg |
| Technical details | |
| Virtual stacking (units) | 4 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 625 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 11.25 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 1024 MB |
