Description

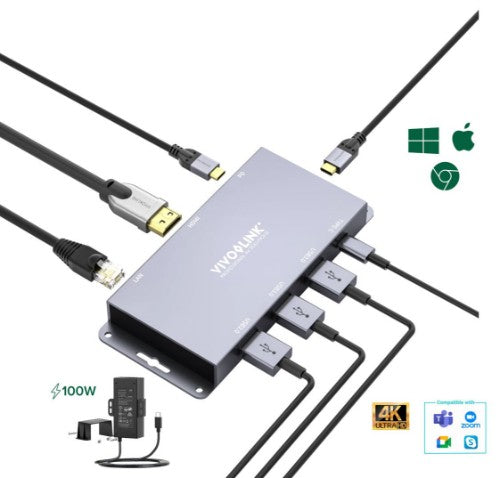

USB-C HUB for conference system
The VLUSBCHUB2 is your key to effortless conferencing. Designed as a 4K USB-C Hub, it allows you to connect multiple devices via USB and share content seamlessly on a single screen.
This Hub is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.
The Hub provides power for the connected device, thus reducing the need for extra unnecessary power cables.
The HDMI output delivers both 4K video and sound from the device, while the LAN port provides cabled network connection to the laptop.
Ensure to use cable PROUSBCMM* for the connection from PC to HUB.
The maximum reccomend lenght of cable is 5m (PROUSBCMM5)
The following formats are supported:
DP Alt Mode and DisplayPort Supported products: Windows PC, Apple MacBook including iPad Pro M2
Reccomended HDMI cables for long distance is: PROHDMIOP20
Package Content:
1 x HUB

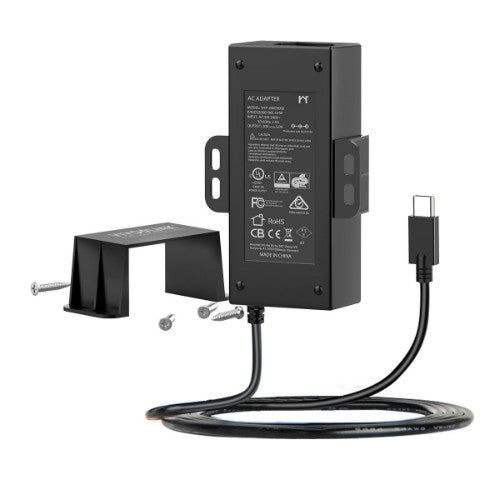

1 x 100W USB-C PSU incl. mount for PSU
1 x UK Power Plug (Type G)
1 x EU Power Plug (Type C)
Key Features
- 1x host USB3.2 Gen2 10 Gbit connector for PC connection
- 1x HDMI output 4K@30Hz resolution
- 2x USB3.0 input 5 Gbit (USB3.2 Gen1)
- 1x USB-C input 5 Gbit (USB3.2 Gen1)
- 1x USB2.0 input 480 Mbps
- 1x Ethernet RJ45 Gigabit input
- 1x USB-C power input 100W
- Including a 100W charger that will fast charge the laptop
Description
Vivolink 4K USB-C HUB – Your all-in-one solution for video conferencing systems. Connect all your equipment, just like you would with a docking station for your computer.The VLUSBCHUB2 is your key to effortless conferencing. Designed as a 4K USB-C Hub, it allows you to connect multiple devices via USB and share content seamlessly on a single screen.
This Hub is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.
The Hub provides power for the connected device, thus reducing the need for extra unnecessary power cables.
The HDMI output delivers both 4K video and sound from the device, while the LAN port provides cabled network connection to the laptop.
Ensure to use cable PROUSBCMM* for the connection from PC to HUB.
The maximum reccomend lenght of cable is 5m (PROUSBCMM5)
The following formats are supported:
DP Alt Mode and DisplayPort Supported products: Windows PC, Apple MacBook including iPad Pro M2
Reccomended HDMI cables for long distance is: PROHDMIOP20
Package Content:
1 x HUB
1 x 100W USB-C PSU incl. mount for PSU
1 x UK Power Plug (Type G)
1 x EU Power Plug (Type C)
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| Ports quantity | 8 |
| HDMI version | 1.4 |
| USB 2.0 Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Product colour | Grey |
| Data transfer rate | 10000 Mbit/s |
| USB Power Delivery (USB PD) | Yes |
| Housing material | Metal |
| USB Power Delivery up to | 100 W |
| HD type | 4K Ultra HD |
| Number of displays supported | 1 |
| Maximum refresh rate | 30 Hz |
| Supported graphics resolutions | 3840 x 2160 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Data transmission | |
| Data transfer rate | 10000 Mbit/s |
| Technical details | |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Grey |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 138 g |
| Width | 60 mm |
| Height | 155 mm |
| Package weight | 472 g |
| Packaging data | |
| Package weight | 472 g |
| Performance | |
| Data transfer rate | 10000 Mbit/s |
| USB Power Delivery (USB PD) | Yes |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | No |
| Design | |
| Product colour | Grey |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 165 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 50 mm |
| Other features | |
| Maximum resolution | 3840 x 2160 pixels |
