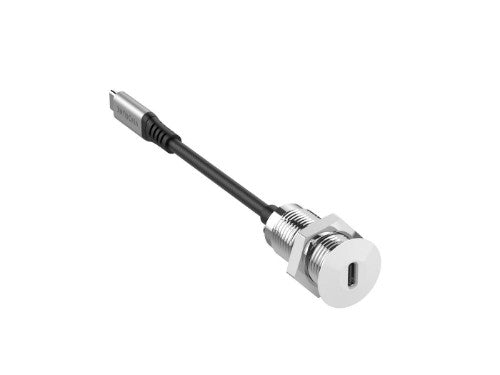

USB-C Desk socket white with 0,3m cable
Key Features
- Support 4K@30Hz Video output
- Data transfer speed 20Gbps and charge power 100w
- Cable lenght 0.3m

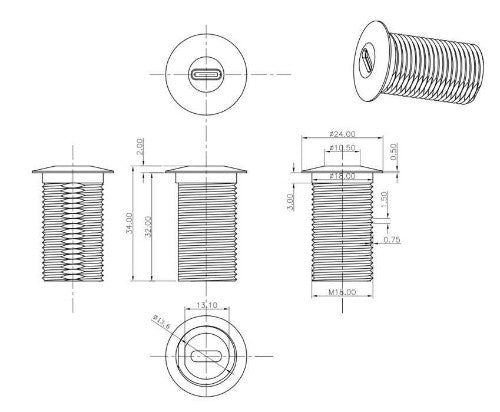

- Desk surface diameter 24mm
- Drill hole diameter 18mm / Depth 32mm
- Manufactured in Zinc alloy
Description
Ideal solution for a cable free full disinfected work space. User can bring own USB-C cable and connect to all devices in the room or at the working desk. The USB-C Port is fully integrated into the table. Perfect match to USB-C hub model VLUSBCHUB2
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| AWG wire size |
24 |
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
0.3 m |
| Connector contacts plating |
Gold |
| Maximum data transfer rate |
10000 Mbit/s |
| Product colour |
White |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Conductor material |
Copper |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
10 Gbit/s |
| Output voltage |
5 - 20 V |
| Output current (max) |
5 A |
| Cable diameter |
6 mm |
| Weight |
50 g |
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Output voltage |
5 - 20 V |
| Output current (max) |
5 A |
| Weight & dimensions |
|---|
| Cable diameter |
6 mm |
| Cable length |
0.3 m |
| Weight |
50 g |
| Package width |
118 mm |
| Package depth |
99 mm |
| Package height |
28 mm |
| Package weight |
60 g |
| Packaging data |
|---|
| Package width |
118 mm |
| Package depth |
99 mm |
| Package height |
28 mm |
| Package weight |
60 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Ports & interfaces |
|---|
| USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector contacts plating |
Gold |
| Data transmission |
|---|
| Maximum data transfer rate |
10000 Mbit/s |
| Technical details |
|---|
| Product colour |
White |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Product colour |
White |
| Compliance certificates |
RoHS |
