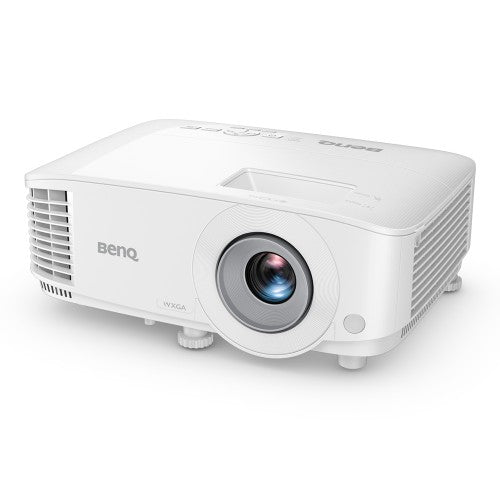

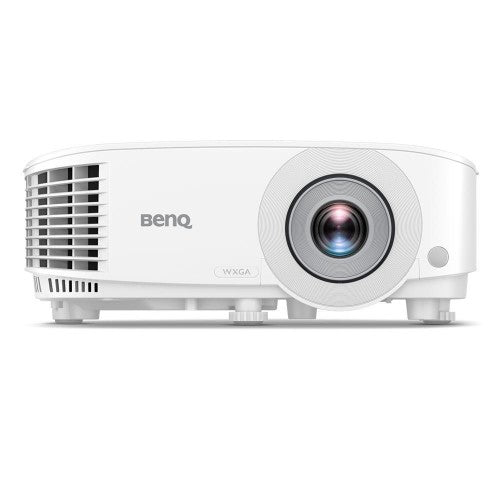

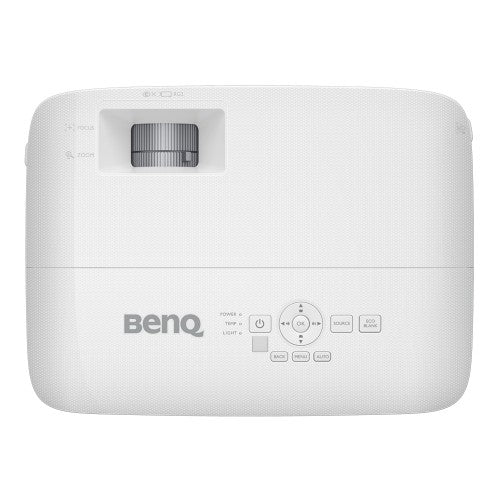

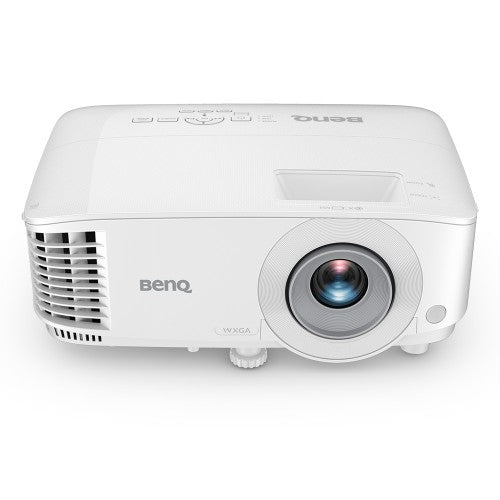

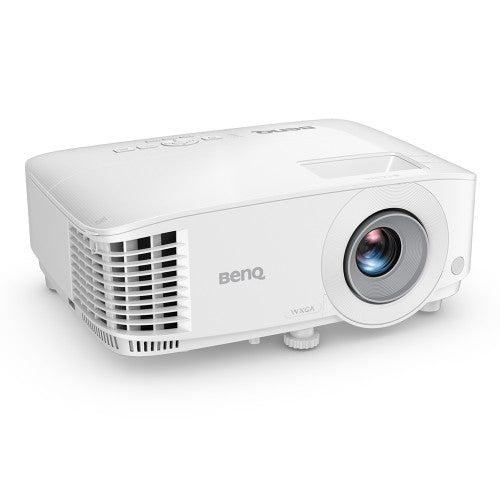

WXGA Business Projector with All Glass Lenses for Presentations, DLP, 4000 ANSI Lumen, 1280 x 800, 20000:1, 16:10
Key Features
- Finest All Glass Lenses for the Best and Purest Image Clarity
- 4000 ANSI Lumens High Brightness and 20,000:1 High Contrast
- Exclusive Data Review Mode for Detailed Data Charts and Special SmartEco Mode Saving Lamp Power Up To 70%
Description
Experience Pure Clarity with the Finest Crystal-Clear Glass Lenses
Entering the Era of Digital Transformation
HDMI for Fast Transmission
HDMI connectivity provides faster data transmission to digital devices
Dual Connectivity, Dual Convenience
Dual HDMI offers more flexible connectivity between devices
Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected
4000 ANSI Lumen, 20000: 1 Contrast
High brightness & contrast images even in well-lit meeting rooms
Finest All Glass Lenses
Precision all glass lenses for brilliant image clarity and quality
Clear Data Review
Data Review Mode makes every letter and digit leap to the eye with clarity
Detailed Infographics
Exclusive Infographic Mode showcases the text and graphics in detail
Clear User Interface
Intuitive windows design to display the contents clearly
Auto Vertical Keystone for Perfect Alignment
Project the image from any angle and get the perfect squared image with Auto Vertical Keystone. It’s to quick to eliminate the blurry images and get to the point in the meeting
Lamp Life up to 15,000 hrs
SmartEco Mode saves lamp power up to 70%
Power-Saving, Energy-Saving
Auto Power Off shuts itself off for power savings after the projector detects no input signal for 20 minutes. (This can be also operated via the OSD)
Easy Setup
Ergonomic retractable foot for easy setup
Get Instant ON
Turn on the projector again within 90 secs after power off and you can start it up in no time
Enhanced Security
Kensington Lock for physical security to discourage theft
All-in-One Solution
No more fuzzy texts and figures
Finest Precision Glass Lenses for Crystal-Sharp Clarity
BenQ uses only high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity. No more fuzzy text or images.
Exclusive Color Modes to Suit Your Needs
Presentation Mode
Designed for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.
Infographic Mode
Great for showcasing detailed infographic text and graphics with high brightness and better color gradation.
Data Review Mode
Data Review Mode displays reports with improved contrast and clarity for added efficiency and collaboration.
Multi-purpose Projector for Any Situation
Mobile Business
Long-Term Fixed Point Placement
Ceiling Mounted
Start Meetings in a Blink
Retractable Adjustment Foot
The triple adjustment feet, including a retractable foot, provide superior flexibility in a wide variety of meeting rooms.
Perfect Alignment
Project perfectly squared images from any angle. Auto Vertical Keystone eliminates blurry images for seamless meetings.
Time-Saving Convenience
The projector automatically turns on once an HDMI input signal is detected.
Get Instant ON
Turn the projector back on within 90 secs of powering off for a nearly instant restart.
Save Energy, Save Manpower
Kensington Lock
Designed to secure tabletop projectors, the Kensington lock interface provides “physical” security.
Anti-Dust Accumulation Sensor
Rejects dust accumulation, enhancing device durability and reducing maintenance costs.
SmartEco Mode
Conserves up to 70% of lamp power for a lamp life of up to 15,000 hrs.
Power-Saving, Energy-Saving
MW560 shuts off if the projector detects no input signal for 20 minutes. (Also accessible via the OSD)
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colours |
| Projector native resolution |
WXGA (1280x800) |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1524 - 3810 mm (60 - 150") |
| Contrast ratio (typical) |
20000:1 |
| Zoom ratio |
1.1:1 |
| Zoom capability |
Yes |
| Vertical scan range |
23 - 120 Hz |
| Horizontal scan range |
15 - 102 kHz |
| Matrix size |
1.65 cm (0.65") |
| Keystone correction, vertical |
-40 - 40° |
| Projection technology |
DLP |
| Projector brightness |
4000 ANSI lumens |
| Smart projector |
No |
| Lamps |
|---|
| Light source type |
Lamp |
| Service life of light source |
6000 h |
| Service life of light source (economic mode) |
10000 h |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
6000 h |
| Service life of light source (economic mode) |
10000 h |
| Lens system |
|---|
| Zoom ratio |
1.1:1 |
| Zoom capability |
Yes |
| Focal length range |
22 - 24.1 mm |
| Aperture range (F-F) |
2.56 - 2.68 |
| Throw ratio |
1.55~1.7:1 |
| Offset |
100% |
| Scanning frequency |
|---|
| Vertical scan range |
23 - 120 Hz |
| Horizontal scan range |
15 - 102 kHz |
| Video |
|---|
| Video colour modes |
Presentation, sRGB |
| Analog signal format system |
NTSC, PAL, SECAM |
| Full HD |
No |
| 3D |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
10 W |

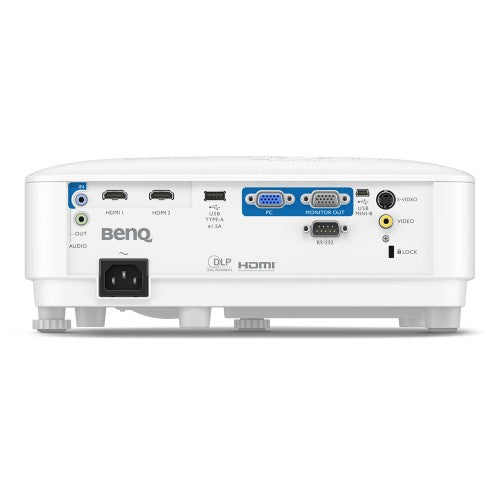

| Ports & interfaces |
|---|
| HDMI connector type |
Full-size |
| PC in (D-Sub) |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Composite video in |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| S-Video inputs quantity |
1 |
| Serial interface type |
RS-232 |
| DVI port |
No |
| AC (power) in |
Yes |
| Mini-USB 2.0 ports quantity |
1 |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
No |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Sound emission |
|---|
| Noise level |
34 dB |
| Noise level (economic mode) |
29 dB |
| Technical details |
|---|
| PC in (D-Sub) |
Yes |
| Product colour |
White |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Performance |
|---|
| Market positioning |
Presentation |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Vertical scan range |
23 - 120 Hz |
| Horizontal scan range |
15 - 102 kHz |
| Noise level |
34 dB |
| Noise level (economic mode) |
29 dB |
| Number of OSD languages |
30 |
| Features |
|---|
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise level |
34 dB |
| Noise level (economic mode) |
29 dB |
| Number of OSD languages |
30 |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
10 W |
| Design |
|---|
| Market positioning |
Presentation |
| Product type |
Standard throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
280 W |
| Power source |
AC |
| Power consumption (typical) |
260 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
215 W |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Other features |
|---|
| Remote control type |
IR |
| Power consumption (economy mode) |
215 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.3 kg |
| Width |
296 mm |
| Depth |
221 mm |
| Height |
120 mm |
| Packaging content |
|---|
| Remote control included |
Yes |
| Remote control type |
IR |
| Cables included |
AC, VGA |
