Description

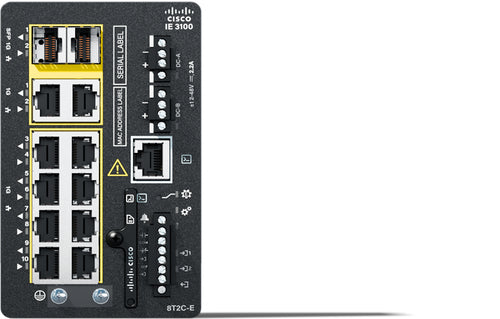

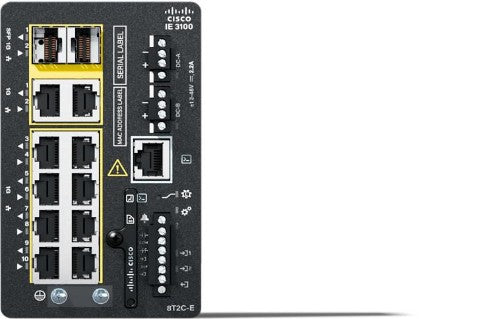

IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
Description
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Performance | |
| Stackable | No |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Power | |
| Power connector | DC-in jack |
| Power supply included | Yes |
| Power source | DC |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD |
| Power connector | DC-in jack |
| Security | |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| DHCP features | DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Design | |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 76.2 mm |
| Depth | 110 mm |
| Height | 127 mm |
| Weight | 860 g |
