Description

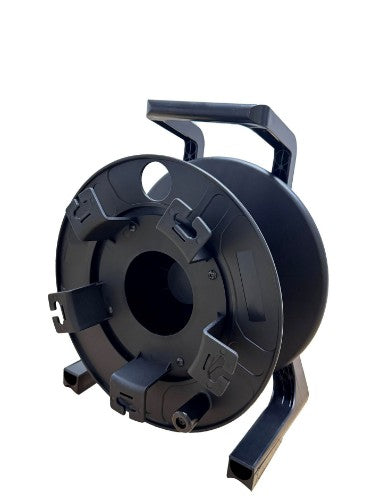

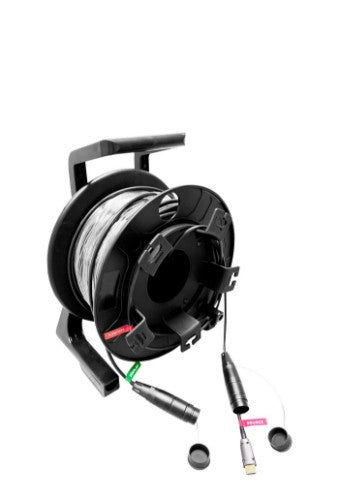

Optic HDMI 4K Armored Cable 100m on Drum
Run the 100 meters of fiber optical HDMI safe, smooth and fast from source to display. The HDMI heads are secured by covers and hold in place with velcro strip when stationary or stored.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
Key Features
- CEC & ARC Support

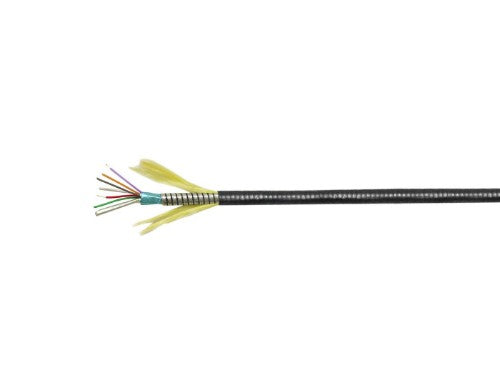

- Cable is built with military standard optical fiber
- Power consumption only 0,35W
- Optic fiber is covered with copper wires
- Kevlar filling inside makes the cable extremely strong and robust

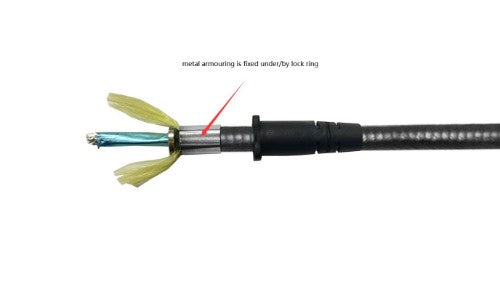

- Lock ring in cable head secure no damage by pulling in cable

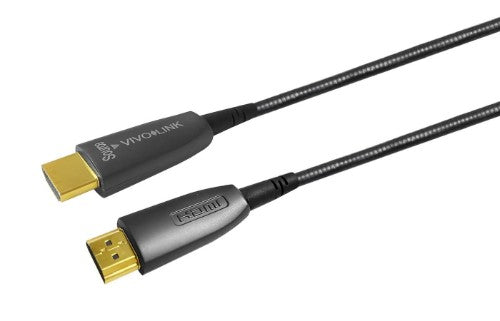

- Cable head is made by molded metal
- Connector pins are gold bladed for a reliable and perfect contact
- The optical fiber converter is extremly high quality chip set
- Minimum bend radius: 20mm
- Unlimited number of bends with bend radius down to 20mm
- working temperature: -20 degree to + 60 degree
Description
100m Fiber Optic Armored HDMI on Drum.Run the 100 meters of fiber optical HDMI safe, smooth and fast from source to display. The HDMI heads are secured by covers and hold in place with velcro strip when stationary or stored.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 100 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Cable type | Round cable |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 1.61 kg |
| Cable diameter | 5 mm |
| Package weight | 5 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 5 kg |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
