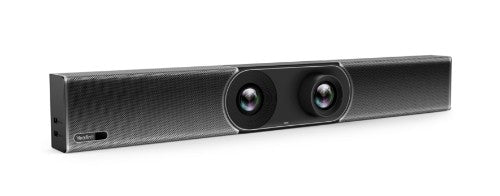

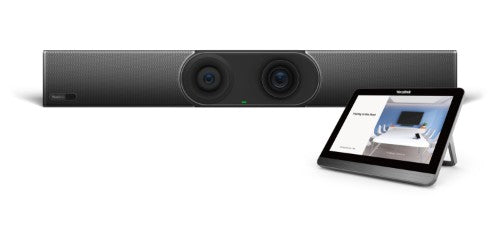

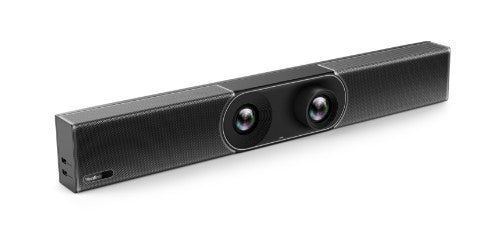

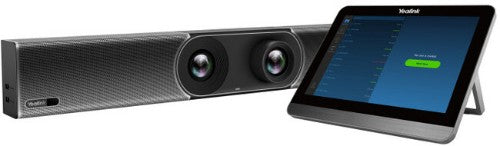

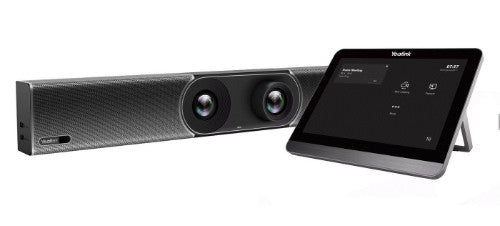

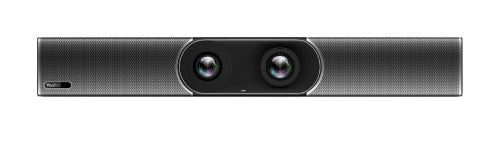

MeetingBar A30-020 - all-in-one video bar - Teams/Zoom/BYOD - AI-powered view - noise cancellation - video conferencing kit (video bar, touch console CTP18)
Key Features
- Dual-camera system
- AI-powered video features: Auto Framing, Speaker Tracking, Picture-in-Picture and Smart Gallary (Zoom supported)
- Built-in 8-MEMS beamforming microphones, full-duplex audio
- AI-enhanced noise cancellation and reverberation suppression

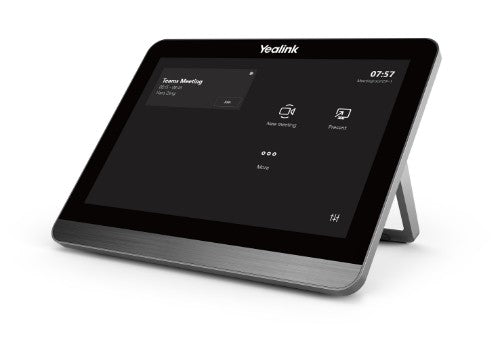

- Intuitive meeting control on the touch panel
Description
Yealink MeetingBar A30 is an all-ine-one video bar deisgned for medium space (up to 15, with additional extended wireless mic. VCM36). The dual-camera system catches details in a medium room precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking, Picture-in-Picture and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Specifications
| Performance |
|---|
| Product type |
Video collaboration bar |
| Product colour |
Black |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Auto framing |
Yes |
| Meeting features |
Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard |
| Technical details |
|---|
| Product type |
Video collaboration bar |
| Product colour |
Black |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Video |
|---|
| Megapixel (approx.) |
8 MP |
| Video codecs |
H.264 High profile, H.264 SVC, H.264 |
| Audio |
|---|
| RMS rated power |
5 W |
| Echo cancellation |
Yes |
| Built-in speaker(s) |
Yes |
| Number of speakers |
1 |
| Audio system full duplex |
Yes |
| Ports & interfaces |
|---|
| Line-out |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
2 |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Security algorithms |
256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
| Networking standards |
IEEE 802.1x |
| VLAN support |
Yes |
| Camera |
|---|
| Megapixel (approx.) |
8 MP |
| Camera type |
Dual camera |
| Second camera resolution |
8 MP |
| Field of view (wide) |
120° |
| Field of view (tele) |
90° |
| Display |
|---|
| Display diagonal |
20.3 cm (8") |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone |
|---|
| Microphone mute |
Yes |
| Number of microphone arrays |
8 |
| Security |
|---|
| Security algorithms |
256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
| Features |
|---|
| Cable lock slot |
Yes |
| Computer system |
|---|
| Processor family |
Qualcomm Snapdragon |
| Operating system installed |
Android 10 |
| Processor model |
845 |
| Computer case |
|---|
| Processor family |
Qualcomm Snapdragon |
| Operating system installed |
Android 10 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
10.5 W |
| Power source type |
AC |
| DC output voltage |
48 V |
| DC output current |
0.7 A |
| Power consumption (idle) |
13 W |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions |
|---|
| Width |
700 mm |
| Depth |
98 mm |
| Height |
121 mm |
| Packaging content |
|---|
| Cables included |
HDMI, LAN (RJ-45) |
| Networking cable length |
3 m |
| HDMI cable length |
1.8 m |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
