Description

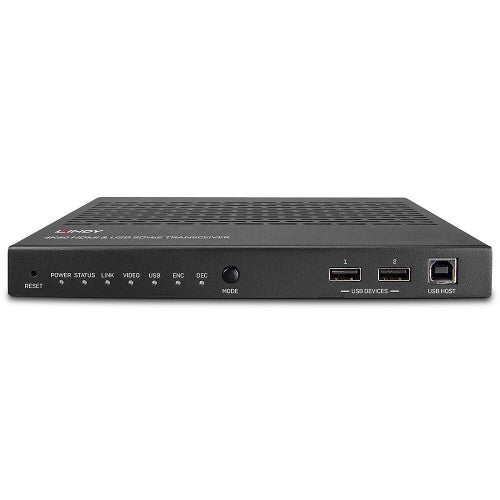

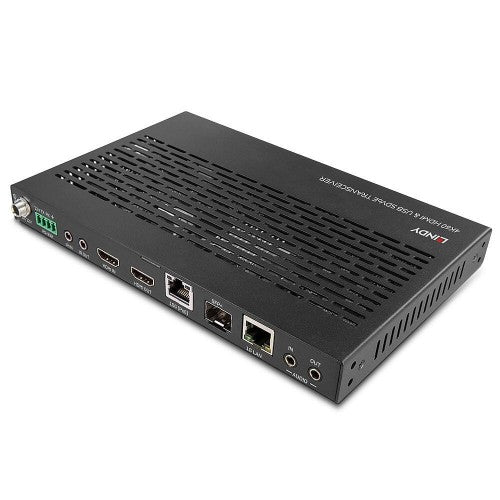

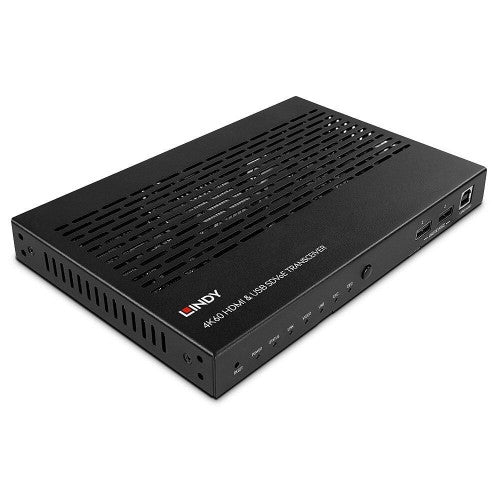

4K60 HDMI and USB SDVoE Transceiver
The Lindy 4K60 HDMI and USB SDVoE Transceiver is a high performance AV over IP Extender for HDMI 4K60, USB, Audio, IR and RS-232 signals. It can be set either as Encoder and Decoder in order to manage a full SDVoE installation while the connection with a 10G Network Switch can be done via copper with a standard Cat.6 or above cable, or adding a SFP+ fiber optic module (not included).
Supporting resolutions up to 4K Ultra HD, uncompressed video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut.
This unit provides different features connecting in multicast mode such as seamless switching, Video Wall up to 9x9 and Muiltiview up to 25 windows.
Device management can be done with Lindy SDVoE Controller (No.38364) providing a web based visual interface with signal preview and drag-and-drop operations making setup of the installation fast and intuitive. The management can be done also through any SDVoE codec, enabling compatibility with other software and hardware streaming platforms.
In addition to HDMI signal, this Transceiver supports bi-directional IR control, USB 2.0 to connect mouse, keyboard and other USB devices, 3.5mm analog stereo for embedding end extracting audio, RS-232 control and PoE.
Please note: this unit works only when connected to a 10Gigabit network. It can be controlled with any SDVoE controller system with API support.
Key Features
- Supports uncompressed resolution up to 4K@60Hz 4:4:4 with HDR10 and no latency
- Encoder or Decoder mode
- Automatic detection of Fiber and Copper connection
- Supports PoE and Multicast, Video Wall and Multiview configurations
- 2 year warranty
Description
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.The Lindy 4K60 HDMI and USB SDVoE Transceiver is a high performance AV over IP Extender for HDMI 4K60, USB, Audio, IR and RS-232 signals. It can be set either as Encoder and Decoder in order to manage a full SDVoE installation while the connection with a 10G Network Switch can be done via copper with a standard Cat.6 or above cable, or adding a SFP+ fiber optic module (not included).
Supporting resolutions up to 4K Ultra HD, uncompressed video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut.
This unit provides different features connecting in multicast mode such as seamless switching, Video Wall up to 9x9 and Muiltiview up to 25 windows.
Device management can be done with Lindy SDVoE Controller (No.38364) providing a web based visual interface with signal preview and drag-and-drop operations making setup of the installation fast and intuitive. The management can be done also through any SDVoE codec, enabling compatibility with other software and hardware streaming platforms.
In addition to HDMI signal, this Transceiver supports bi-directional IR control, USB 2.0 to connect mouse, keyboard and other USB devices, 3.5mm analog stereo for embedding end extracting audio, RS-232 control and PoE.
Please note: this unit works only when connected to a 10Gigabit network. It can be controlled with any SDVoE controller system with API support.
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Fiber optic connector | SFP+ |
| HDCP version | 1.4/2.2 |
| Technical details | |
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Maximum refresh rate | 60 Hz |
| Package type | Box |
| Ethernet LAN | Yes |
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |

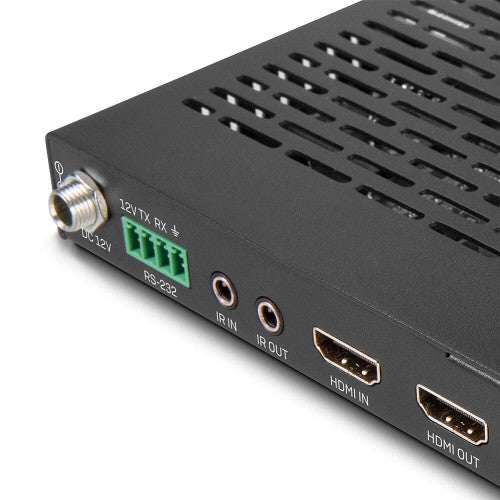

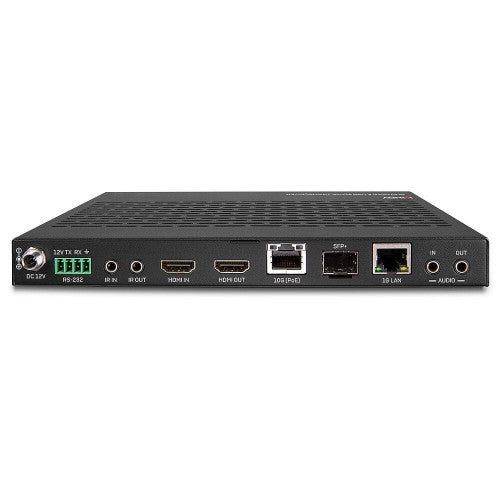

| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB ports quantity | 3 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0b |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 1 |
| Power | |
| Output current | 1 A |
| Operating voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 204 mm |
| Package depth | 185 mm |
| Height | 21.5 mm |
| Depth | 134 mm |
| Package width | 245 mm |
| Package height | 75 mm |
| Weight | 980 g |
| Package weight | 1.3 kg |
| Packaging data | |
| Package type | Box |
| Package depth | 185 mm |
| Package width | 245 mm |
| Package height | 75 mm |
| Package weight | 1.3 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | IR |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, UK, US |
