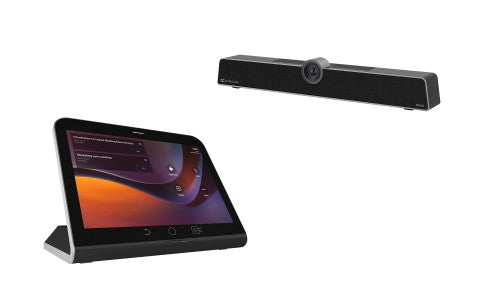

Teams RXV81 Video Collaboration Bar with built-in audio bundled 10 with RX-PAD Room Touch Controller
Key Features
- Intuitive meeting experiences with one click to join using the Microsoft Teams Rooms on Android™ 12 application
- An easy-to-use mounting element and minimal cable connections enable a quick and simple deployment every time
- Superior audio via a full-room pickup, with no need for an additional external USB microphone or speaker

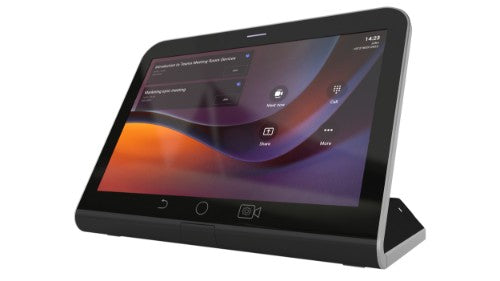

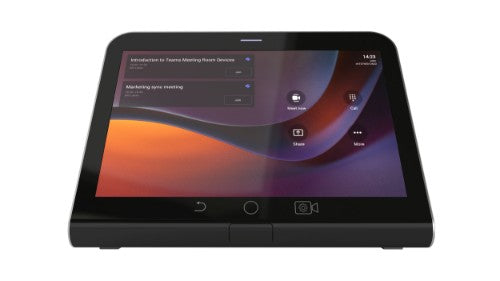

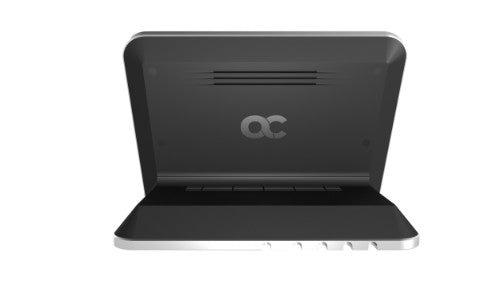

- With the RX-PAD, Start meetings instantly and share your screen with a single touch
- The RX-PAD odders a customized and intuitive interface to effortlessly boost meeting productivity
- RX-PAD is packed with exciting new features like one-click collaboration initiation via an integrated calendar, seamless content sharing, quick and easy camera adjustments, and much more
Description

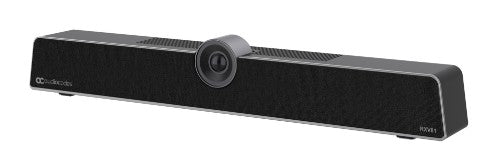

The AudioCodes RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) video bar that takes plug-and-play simplicity to another level, resulting in a familiar and exceptionally productive Microsoft Teams meeting experience. When bundled with the RX-PAD as the room's sleek touch controller, the user can easily set up and control meetings in any type of room via a central controller. The RXV81 embedded speakers and 6 mics, as well as Full HD and ePTZ with 5x zoom, provides outstanding image clarity and enhanced voice quality, making every meeting interactive and personable, as remote participants can see and hear everyone in the room, and can also participate in full Teams video and content sharing sessions.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Product colour |
Black |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Product colour |
Black |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Video |
|---|
| HD type |
4K Ultra HD |
| Resolution at capture speed |
1920x1080@30fps |
| Digital zoom |
5x |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Microphone pick-up range |
4.5 m |
| RMS rated power |
10 W |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| Built-in speaker(s) |
Yes |
| Clear Voice technology |
Yes |
| Number of speakers |
1 |
| Audio system full duplex |
Yes |

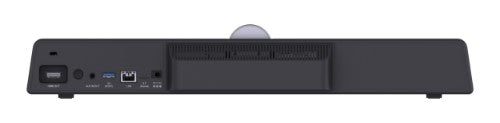

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| AUX in (speaker) |
Yes |
| HDMI output ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Supported network protocols |
TCP/IP (IPv4) |
| Security algorithms |
256-bit AES, SRTP, TLS |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Camera |
|---|
| Horizontal field of view |
110° |
| Remote control interface |
Bluetooth |
| Digital zoom |
5x |
| Vertical field of view |
75° |
| Diagonal field of view |
120° |
| Camera type |
Single camera |
| Zoom capability |
Yes |
| Display |
|---|
| Built-in display |
Yes |
| Display diagonal |
20.3 cm (8") |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone |
|---|
| Number of microphone arrays |
6 |
| Security |
|---|
| Security algorithms |
256-bit AES, SRTP, TLS |
| Computer system |
|---|
| Operating system installed |
Android 9 |
| Computer case |
|---|
| Operating system installed |
Android 9 |
| Power |
|---|
| DC input voltage |
12 V |
| Current |
3 A |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Remote control dimensions (W x H x D) |
212 x 128.4 x 152.8 mm |
| Remote control weight |
908 g |
