Description

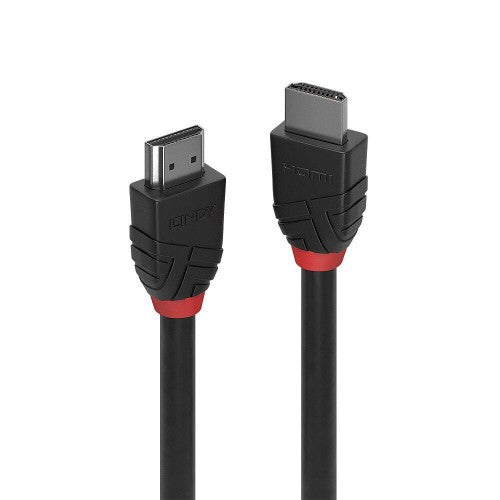

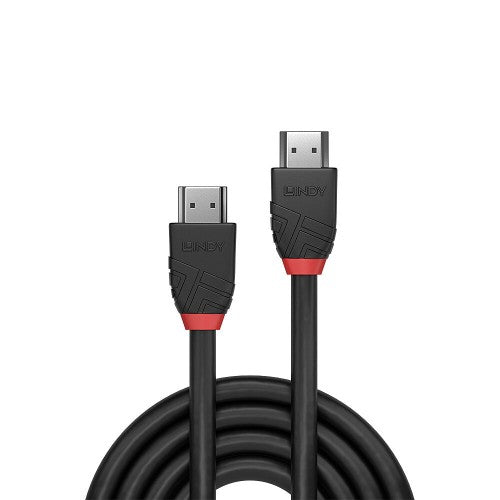

7.5m Standard HDMI Cable, Black Line
Black Line Standard HDMI cables feature triple shielded construction with 28AWG copper coated steel conductors for premium performance and corrosion resistance.Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@30Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD.
The HDMI 2.0 specification is supported for 10.2Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m
Key Features
- Entry Level Standard HDMI 2.0 cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@30hz 4:4:4 8bit
- Robust PVC housing, Nickel Connectors, 24k gold plated contacts
- Triple shielded cable, corrosion resistant copper coated steel 28AWG conductorsandnbsp;
- 10 year warranty
Description
From the lines cable connectivity concept developed by Lindy, Black Line Standard HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line Standard HDMI cables feature triple shielded construction with 28AWG copper coated steel conductors for premium performance and corrosion resistance.Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@30Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD.
The HDMI 2.0 specification is supported for 10.2Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 30 Hz |
| HDMI Ethernet channel | Yes |
| Product colour | Black |
| Cable length | 7.5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Cable material | Copper-clad steel (CCS) |
| Magnetically shielded | Yes |
| AWG wire size | 28 |
| HDMI version | 2.0 |
| Data transfer rate | 10.2 Gbit/s |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160i |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Colour sampling | 4:4:4 |
| Bending radius (min) | 7 cm |
| Connector material | Nickel |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Shield material | Aluminium |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Connector 1 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Connector 2 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Package type | Polybag |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Compliance certificates | REACH, RoHS |
