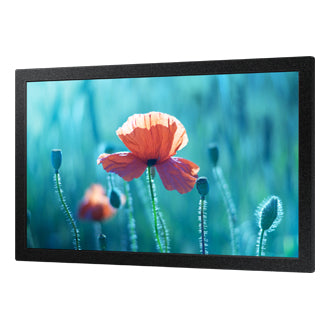

Samsung QB13R-M, Digital signage flat panel, 33 cm (13"), LCD, 1920 x 1080 pixels, Wi-Fi, 16/7
Description
Samsung QB13R-M. Product design: Digital signage flat panel. Display diagonal: 33 cm (13"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
Specifications
| Display |
|---|
| Panel type |
ADS |
| Touchscreen |
No |
| Display technology |
LCD |
| Colour gamut |
45% |
| Display diagonal |
33 cm (13") |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
500 cd/m² |
| HD type |
Full HD |
| Response time |
30 ms |
| Contrast ratio (typical) |
800:1 |
| Contrast ratio (dynamic) |
10000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.153 x 0.153 mm |
| Vertical scan range |
48 - 75 Hz |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 81 kHz |
| Haze rate |
25% |
| Pixel frequency (max) |
594 MHz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| HDMI version |
1.4 |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
0 |
| DC-in jack |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB ports quantity |
1 |
| HDMI input ports quantity |
1 |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Bezel width (top) |
1.22 cm |
| Bezel width (side) |
1.22 cm |
| Bezel width (bottom) |
1.22 cm |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| Certification |
Class B
60950-1, 62368-1 |
| VESA mounting |
Yes |
| Mounting type |
Wall |
| Screen shape |
Flat |
| Bezel colour |
Charcoal Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
27.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Operating system installed |
Tizen 4.0 |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display width |
322 mm |
| Display depth |
28.2 mm |
| Display height |
193.5 mm |
| Display weight |
900 g |
| Packaging data |
|---|
| Package width |
376 mm |
| Package depth |
248 mm |
| Package height |
132 mm |
| Package weight |
1.7 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Certificates |
|---|
| Certification |
Class B
60950-1, 62368-1 |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
ADS |
| RJ-45 input ports |
1 |
| RS-232 input ports |
1 |
| Audio out (mini jack) |
1 |
| Thin Client |
|---|
| Operating system installed |
Tizen 4.0 |
| Other features |
|---|
| Panel type |
ADS |
| RJ-45 input ports |
1 |
| RS-232 input ports |
1 |
| Wi-Fi |
Yes |
| Flash memory |
8000 MB |
| Display technology |
LCD |
| DC-in jack |
Yes |
| Bezel width (top) |
1.22 cm |
| Bezel width (side) |
1.22 cm |
| Bezel width (bottom) |
1.22 cm |
