Description

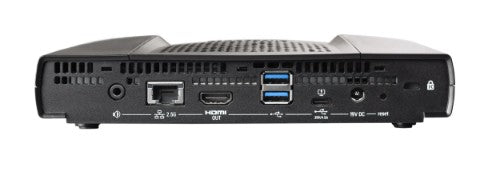

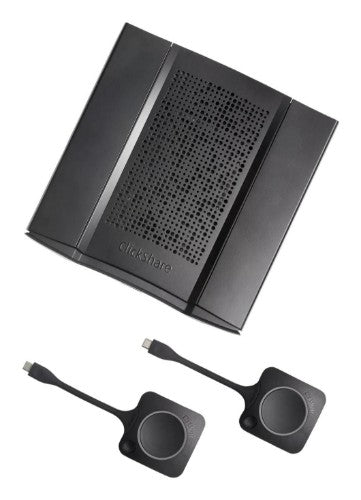

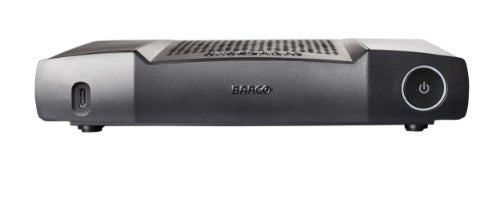

ClickShare CX-50 Gen2 - EU version w/ 2 Buttons, HDMI in, HDMI out, 3x USB-A, USB-C, S/PDIF, 3.5mm, Ethernet LAN 1Gbit, 802.11 a/g/n/ac, 985g
ClickShare CX-50 2nd generation brings flexible wireless conferencing in high-impact meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Key Features
- Dual screen: people and content side by side on two displays
- Effortless switching between UC mode and BYOM experience
- Wired roomdock for 4K content sharing and alternative connectivity
- Carbon-neutral product
- 100% secure, encrypted and cloud-managed
Description
Premium conferencing solution for high-impact roomsClickShare CX-50 2nd generation brings flexible wireless conferencing in high-impact meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Specifications
| Design | |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Features | |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| AirPlay mirroring | Yes |
| Miracast | Yes |
| Concurrent users | 32 user(s) |
| Google Cast | Yes |
| Network | |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4, 5 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2000,2500 Mbit/s |
| Security algorithms | WPA2-PSK |
| Maximum operating distance | 30 m |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Dual-band | Yes |
| Ports & interfaces | |
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| HDMI version | 1.4b |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| Power source type | AC |
| Input voltage | 110 - 220 V |
| Power consumption (max) | 74.5 W |
| Power consumption (standby) | 0.27 W |
| System requirements | |
| Windows operating systems supported | Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mobile operating systems supported | Android 11.0, Android 12.0, Android 13.0, Android 14.0, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Mac compatibility | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 202 mm |
| Height | 39 mm |
| Weight | 985 g |
| Packaging content | |
| Remote control included | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
