Description

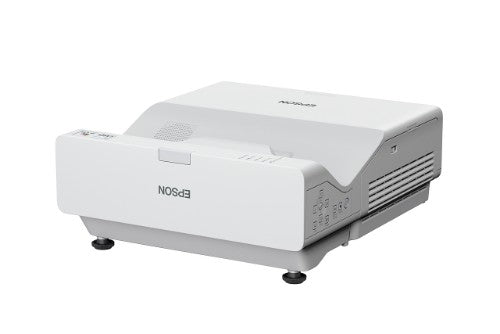

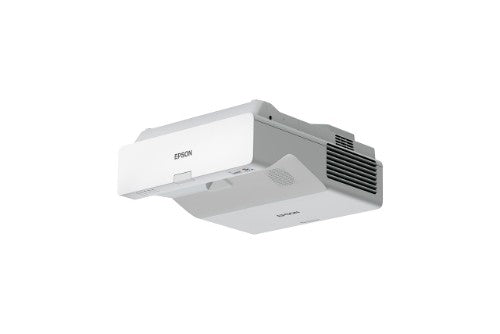

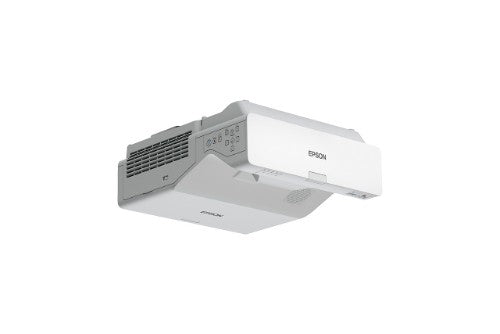

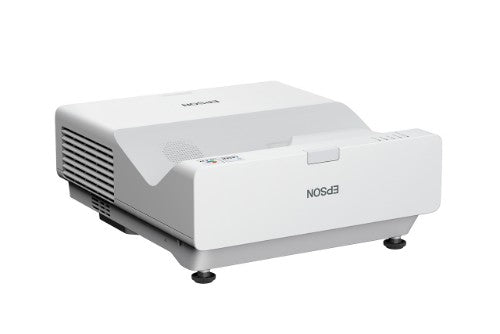

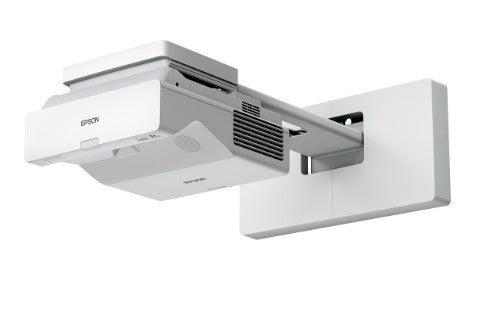

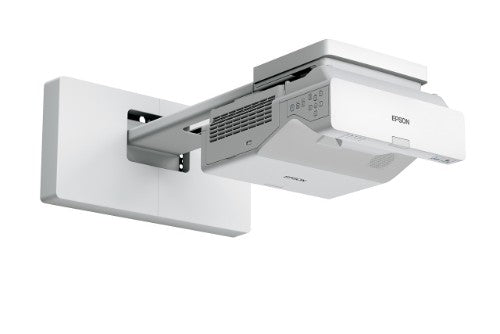

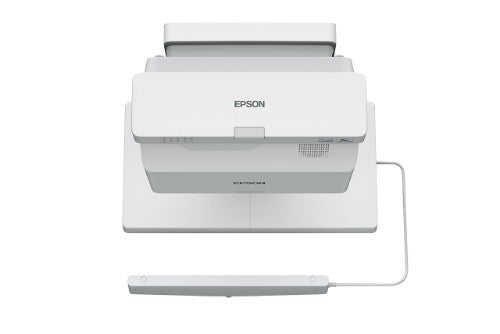

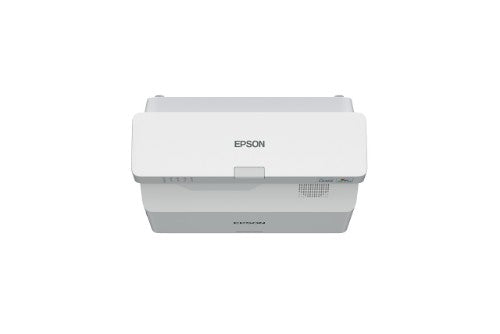

EB-770Fi
Project your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
Description
Agile USTi laser displayProject your vision, with a Full HD interactive large screen display up to 100" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colours |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Contrast ratio (typical) | 2500000:1 |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, vertical | -3 - 3° |
| Keystone correction, horizontal | -3 - 3° |
| Projection technology | 3LCD |
| Projector brightness | 4100 ANSI lumens |
| Heat dissipation | 895 BTU/h |
| Lamps | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Fixed focal length | 3.7 mm |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Throw ratio | 0.25 - 0.35:1 |
| F-number (relative aperture) | 1.6 |
| Scanning frequency | |
| Vertical scan range | 192 - 240 Hz |
| Video | |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Ports & interfaces | |
| USB 2.0 Type-B ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| Technical details | |
| Product colour | White |
| Heat dissipation | 895 BTU/h |
| Performance | |
| Market positioning | Presentation |
| Vertical scan range | 192 - 240 Hz |
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| Heat dissipation | 895 BTU/h |
| Features | |
| Interactive | Yes |
| Interactive input supported | Interactive pen/Touch |
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Presentation |
| Product type | Ultra short throw projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Placement | Ceiling, Desktop, Wall |
| Power | |
| AC adapter output voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (PowerSave) | 199 W |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 6 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, USB |
| Batteries included | Yes |
| Other features | |
| F-number (relative aperture) | 1.6 |
