Description
1/2.3" CMOS, 2992x2992px, 30 fps, 0.04lx, 182° FOV, 5.1W PoE

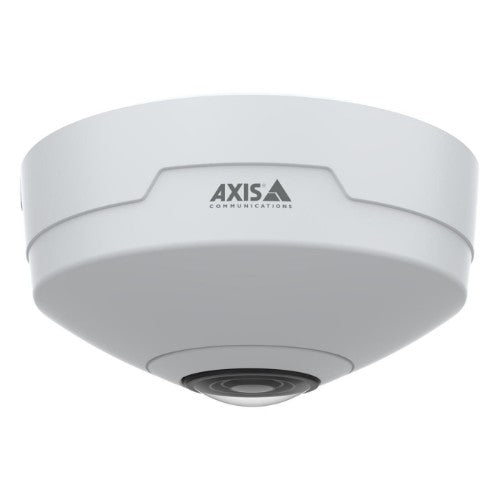

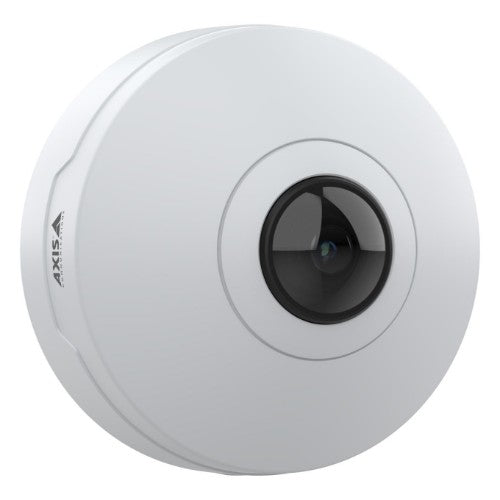

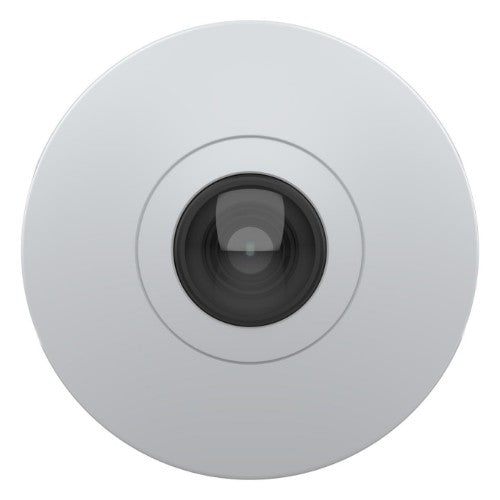

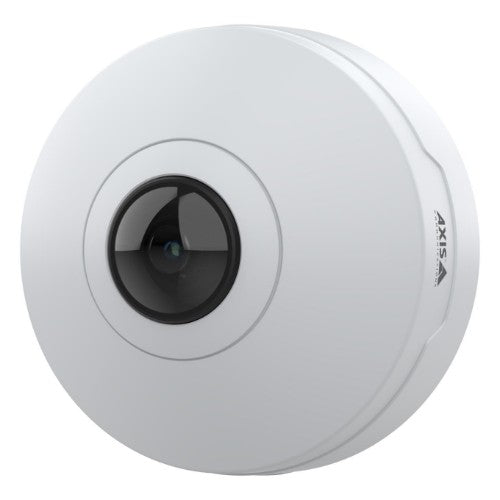

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
Description
Great video performanceAXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 20 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| PTZ modes | Digital PTZ, Preset point |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 |
| Design | |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| LED indicators | Yes |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.04 lx |
| Camera shutter speed | 1/8100 - 1/2 s |
| Lens viewing angle, horizontal | 182° |
| Lens viewing angle, vertical | 182° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Fixed focus | Yes |
| Fixed focal length | 2.2 mm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 2992 x 2992 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 256 x 144, 384 x 288, 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 12 MP |
| Audio | |
| Audio system | 2-way |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features | |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 5.1 W |
| Power consumption (typical) | 3.5 W |
| Certificates | |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 101 mm |
| Depth | 101 mm |
| Height | 51 mm |
| Weight | 300 g |
| Sustainability | |
| Compliance certificates | RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC/BFR |
| Compliance certificates | RoHS |
| Other features | |
| Doesn't contain | PVC/BFR |
