Description
1D Handheld Scanner, 2500 Linear, Bluetooth 4.0/3.0/2.1+EDR, 2.4 - 2.5GHz ISM band, Li-ion, 3.7V 900mAh, Black, 67g
Bluetooth wireless can be used to pair the Piranha II with a mobile computer, consumer phone, tablet or micro kiosk. This adaptability and portability makes it the perfect solution for industries like retail, warehousing and online to offline (O2O) applications like electronic ticketing and electronic ordering.
Superior 1D Reading Performance
Equipped with a snappy 1D engine, the BS80 Piranha II can read all major 1D symbologies from both paper and screen.
Easy Bluetooth Pairing
With Bluetooth 4.0 wireless technology, the BS80 Piranha II enables effortless pairing to any Android, iOS, or Windows device, making it simple and convenient for users to transmit data.
Seamless Barcode Capture and Storage
The BS80 Piranha II offers versatile barcode scanning capabilities, enabling fast real-time scanning with seamless data transfer to the host via Bluetooth. However, users can also take advantage of the 1MB memory when operating in batch collection mode, which can store thousands of barcodes offline for subsequent download via Bluetooth or cable.
Edits On the Go
The BS80 Piranha II boasts not only a reliable scan button but also two extra buttons for convenient data editing. For data collection mode, the Delete button allows users to quickly rectify scanning errors by deleting the last scanned barcode. Meanwhile, the Function button serves as a virtual keyboard recall feature, enabling manual data input on a wide range of host devices, including iOS products. This makes the BS80 Piranha II an ideal companion for all your data collection needs.
Versatile Charging & Communication
The BS80 Piranha II features a fast and reliable USB-C port that can be used both for charging and establishing a connection to a host to download data or access the EasySet configuration software. In addition, the device also supports the use of pogo pins to charge via the cradle.
Multi-Device Charging
The BS80 Piranha II offers an optional two-bay charging solution that can be easily linked together to create a multi-charging station. With optimized charging capabilities, users can daisy-chain up to five cradles, allowing them to charge up to ten scanners simultaneously using a single power supply.
Key Features
- Superior 1D Reading Performance
- Easy Bluetooth Pairing
- Seamless Barcode Capture and Storage
- Edits On the Go
- Versatile Charging & Communication
- Multi-Device Charging
Description

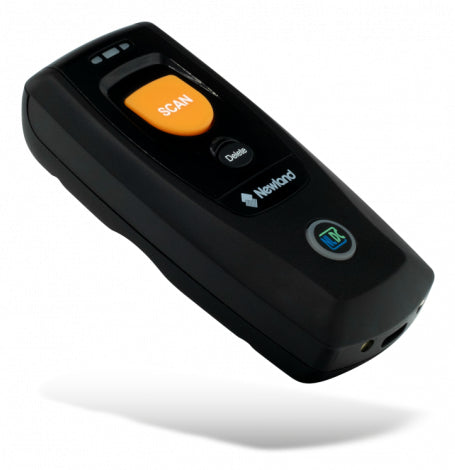

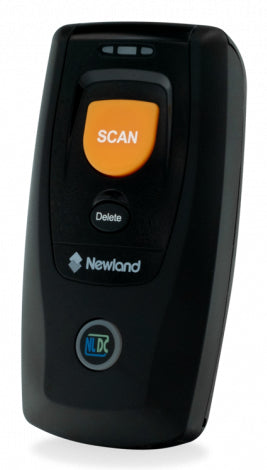

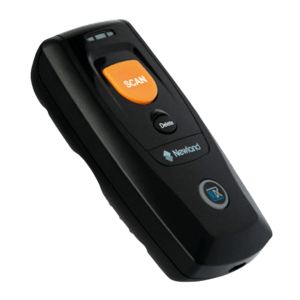

The BS80 Piranha II is a snappy, small, and portable barcode scanner, providing the convenience of always having a scanner at your fingertips. Dimensions of 88 x 46 x 24.5 mm make it small enough to fit into your pocket and light enough to carry around all day. Despite its small size, the Piranha II maintains an excellent performance, seamlessly scanning major 1D barcodes.Bluetooth wireless can be used to pair the Piranha II with a mobile computer, consumer phone, tablet or micro kiosk. This adaptability and portability makes it the perfect solution for industries like retail, warehousing and online to offline (O2O) applications like electronic ticketing and electronic ordering.
Superior 1D Reading Performance
Equipped with a snappy 1D engine, the BS80 Piranha II can read all major 1D symbologies from both paper and screen.
Easy Bluetooth Pairing
With Bluetooth 4.0 wireless technology, the BS80 Piranha II enables effortless pairing to any Android, iOS, or Windows device, making it simple and convenient for users to transmit data.
Seamless Barcode Capture and Storage
The BS80 Piranha II offers versatile barcode scanning capabilities, enabling fast real-time scanning with seamless data transfer to the host via Bluetooth. However, users can also take advantage of the 1MB memory when operating in batch collection mode, which can store thousands of barcodes offline for subsequent download via Bluetooth or cable.
Edits On the Go
The BS80 Piranha II boasts not only a reliable scan button but also two extra buttons for convenient data editing. For data collection mode, the Delete button allows users to quickly rectify scanning errors by deleting the last scanned barcode. Meanwhile, the Function button serves as a virtual keyboard recall feature, enabling manual data input on a wide range of host devices, including iOS products. This makes the BS80 Piranha II an ideal companion for all your data collection needs.
Versatile Charging & Communication
The BS80 Piranha II features a fast and reliable USB-C port that can be used both for charging and establishing a connection to a host to download data or access the EasySet configuration software. In addition, the device also supports the use of pogo pins to charge via the cradle.
Multi-Device Charging
The BS80 Piranha II offers an optional two-bay charging solution that can be easily linked together to create a multi-charging station. With optimized charging capabilities, users can daisy-chain up to five cradles, allowing them to charge up to ten scanners simultaneously using a single power supply.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | Linear |
| Scanner type | 1D |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Wireless range | 50 m |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Bluetooth, USB |
| Performance | |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators | Notification |
| Built-in display | No |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | Black |
| Certification | IEC 62471, IEC60825 |
| Vibration function | Yes |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators | Notification |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | IEC 62471, IEC60825 |
| Power | |
| Power consumption | 25 mA |
| Power source type | Battery |
| Battery life | 6.5 h |
| Battery voltage | 3.7 V |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 900 mAh |
| Weight & dimensions | |
| Width | 46 mm |
| Depth | 88 mm |
| Height | 24.5 mm |
| Weight | 67 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators | Notification |
| Built-in display | No |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | Black |
| Certification | IEC 62471, IEC60825 |
| Doesn't contain | Cadmium, Lead, Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Telecom Engineering Center (TELEC) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.2 m |
| Battery | |
| Rechargeable battery | Yes |
| Other features | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
