Description
Antenna QuSpot for Teltonika RUTX50

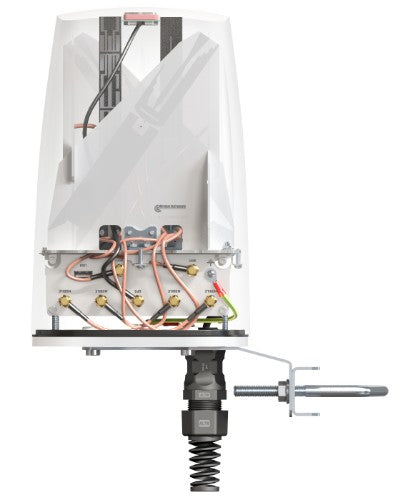

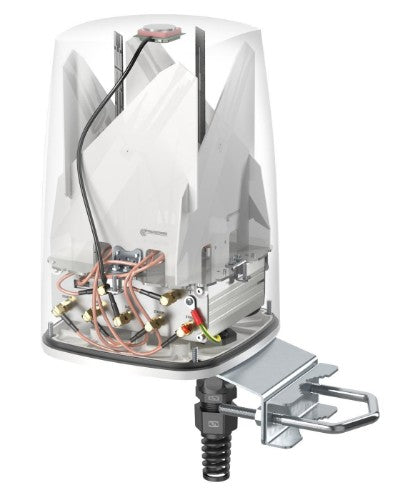

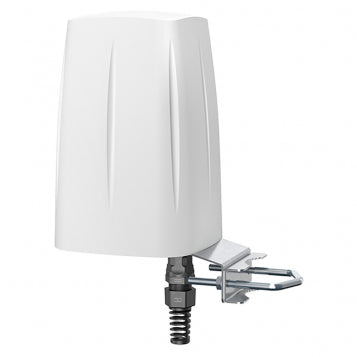

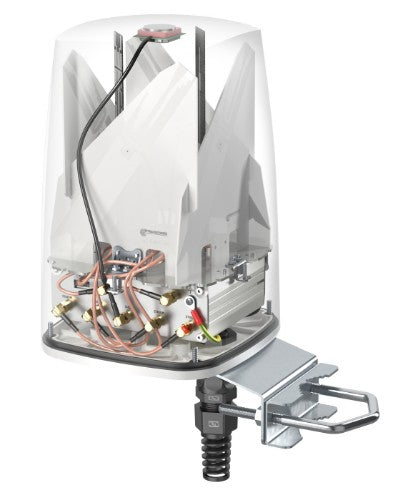

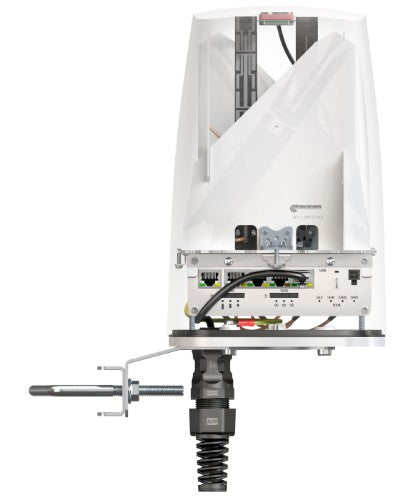

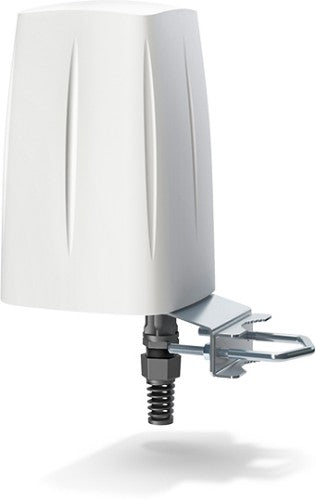

QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
Description
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 4.5 dBi |
| Frequency band | 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 25° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4.5 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE) |
| International Protection (IP) code | IP67 |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.00 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX50 |
| Country of origin | Poland |
| Antenna gain level (max) | 4.5 dBi |
| Frequency band | 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 25° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4.5 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Technical details | |
| Antenna gain level (max) | 4.5 dBi |
| Frequency band | 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.00 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 25° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4.5 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX50 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Poland |
| Quantity per pack | 1 pc(s) |
