Description

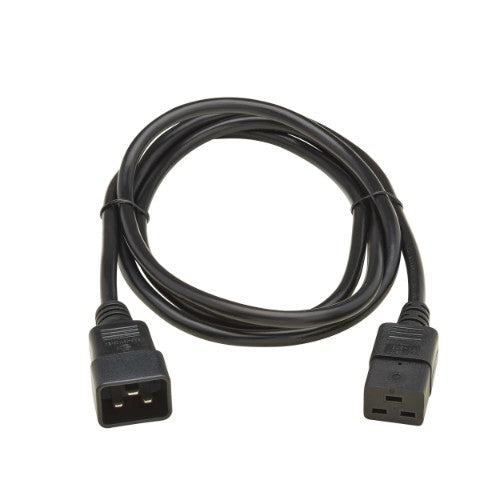

2 m, C19 to C20 - 16A, 250V, H05VV-F, PVC, Black
Power Cord Connects High-Output Data Center Equipment to Reliable AC Power

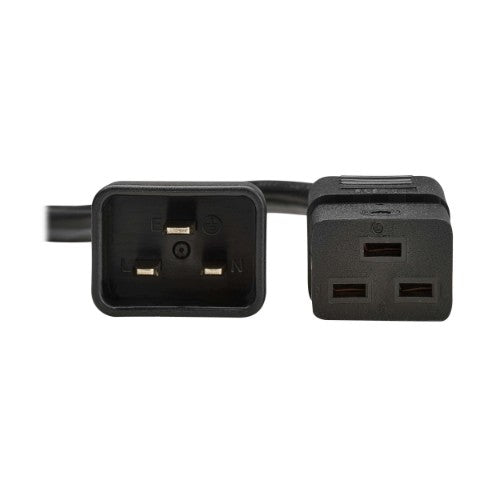

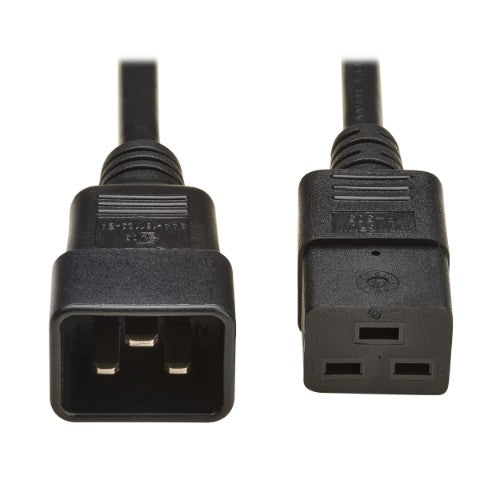

This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Key Features
- Recommended for powering blade server chassis and other high-output devices
- 2-meter length allows flexibility in placing devices in relationship to AC outlet
- Ideal replacement for a worn-out or missing power extension cord
- VDE-compliant H05VV-F jacket allows use in European IT applications
Description
Connects high-output devices with C19/C20 power connectors, including routers and blade servers.Power Cord Connects High-Output Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | IEC C19 |
| Connector 1 | IEC C20 |
| Cable length | 2 m |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Number of conductors | 3 |
| Cable type | H05VV-F |
| AWG wire size | 16 |
| Certification | CE (Europe); REACH; RoHS; UKCA |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector 2 | IEC C19 |
| Connector 1 | IEC C20 |
| Cable length | 2 m |
| Connector 1 standard | CEE 7/4 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | Black |
| Power | |
| Input voltage | 250 V |
| Input current | 16 A |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 70 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Diameter | 8.2 mm |
| Package width | 203 mm |
| Package depth | 13 mm |
| Package height | 254 mm |
| Package weight | 181 g |
| Packaging data | |
| Package width | 203 mm |
| Package depth | 13 mm |
| Package height | 254 mm |
| Package weight | 181 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Polyvinyl chloride (PVC) |
