Description
5x 10/100/1000 Mbps, PoE, 9 KB Jumbo, 2K MAC, 99.8 x 98 x 25mm
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.

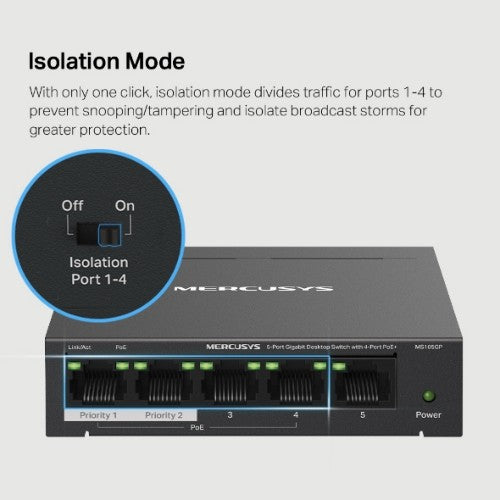

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.

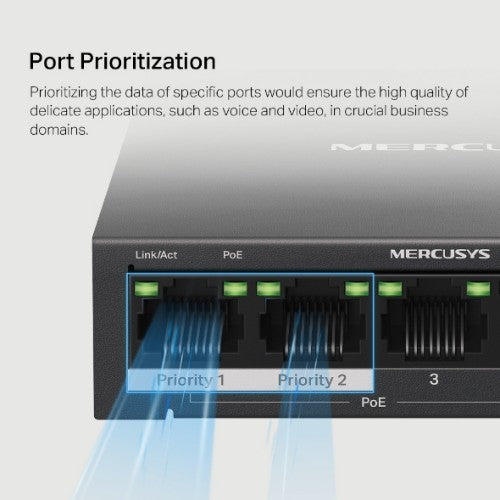

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play
MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Key Features
- ull Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports

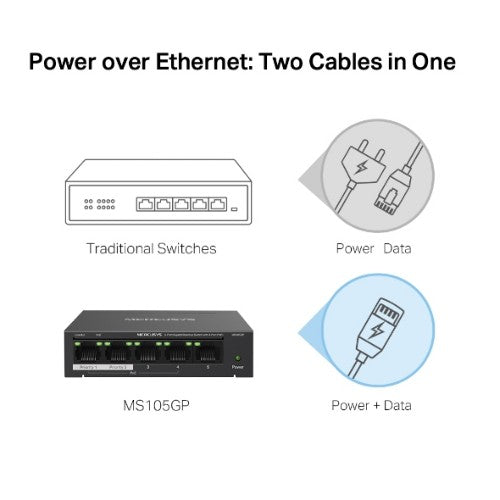

- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
Description
No FussNo need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play
MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Optical fiber | |
| Transmission distance (max) | 0.1 km |
| Data transmission | |
| Jumbo frames | 9 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, RoHS |
| Power | |
| Power consumption (max) | 75.15 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 3.13 W |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Performance | |
| Stackable | No |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
