Description

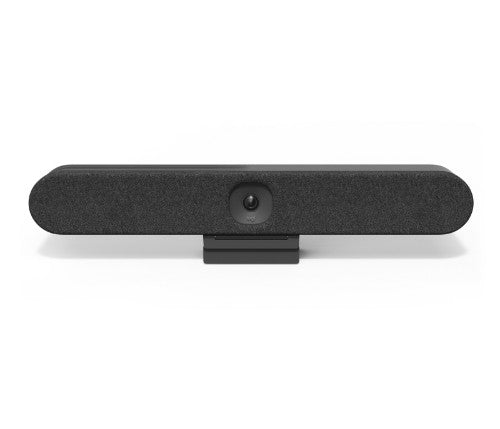

Logitech 960-001577, Group video conferencing system, 4K Ultra HD, 4x, Graphite
Description
Logitech 960-001577. Product type: Group video conferencing system. HD type: 4K Ultra HD. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Bluetooth, Product colour: GraphiteSpecifications
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Tilt angle range | -32 - 32° |
| Pan range | -48 - 48° |
| Product colour | Graphite |
| Camera cable length (max) | 2.2 m |
| PTZ control | Yes |
| Bluetooth | Yes |
| Technical details | |
| Product type | Group video conferencing system |
| Tilt angle range | -32 - 32° |
| Pan range | -48 - 48° |
| Product colour | Graphite |
| Camera cable length (max) | 2.2 m |
| PTZ control | Yes |
| Bluetooth | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Digital zoom | 4x |
| Audio | |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Speaker power | 8 W |
| Echo cancellation | Yes |
| Built-in speaker(s) | Yes |
| Sample rates | 0 - 48 kHz |
| Audio beamforming | Yes |
| Driver diameter | 5.5 cm |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file |
| Security algorithms | 128-bit AES |
| Camera | |
| Horizontal field of view | 113° |
| Digital zoom | 4x |
| Vertical field of view | 80° |
| Diagonal field of view | 120° |
| Camera type | Single camera |
| Zoom capability | Yes |
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Microphone | |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Number of microphones | 6 |
| Sound pressure level (max) | 83 dB |
| Security | |
| Security algorithms | 128-bit AES |
| Features | |
| Telepresence | No |
| Computer system | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Power | |
| AC input voltage | 100-240 V |
| Current | 2.1 A |
| Power source type | AC |
| Power plug type | Type G |
| DC output voltage | 19 V |
| Weight & dimensions | |
| Width | 549.6 mm |
| Depth | 76 mm |
| Height | 78.9 mm |
| Weight | 1.8 kg |
| Package width | 197 mm |
| Package depth | 629 mm |
| Package height | 118 mm |
| Package weight | 3.21 kg |
| Packaging content | |
| Packaging content | Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| Batteries included | No |
| AC adapter included | Yes |
