Description

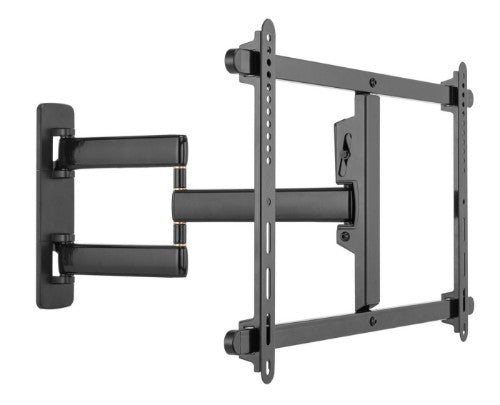

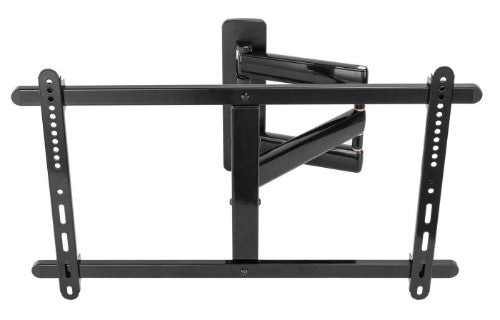

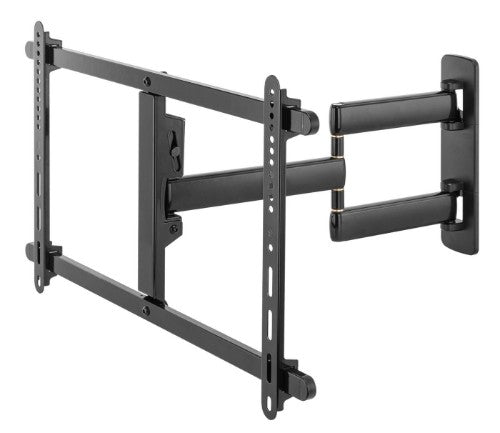

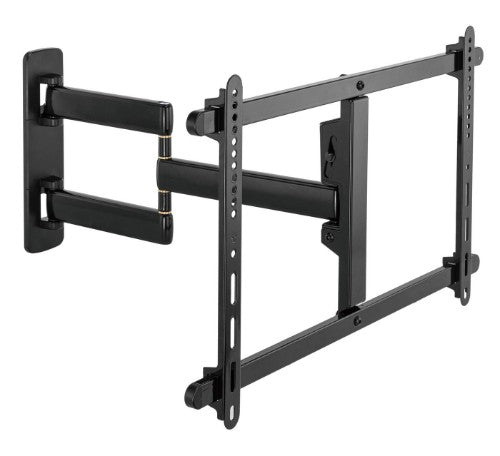

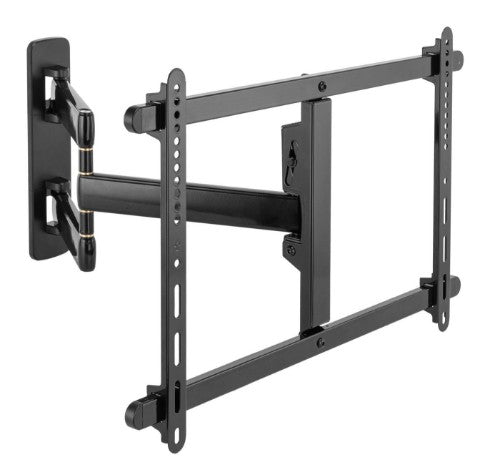

Pro Medium Wall Mount w. Arm, Max 50 kg, Up to VESA 600x400
With tilting and swiveling features.
Typical installations: Meeting rooms, restaurants, offices, hotels or living room.
Key Features
- Premium Aluminium wall mount for screen size 37” to 80”
- Matching up to VESA 600x400
- Max loading capacity: 50kgs

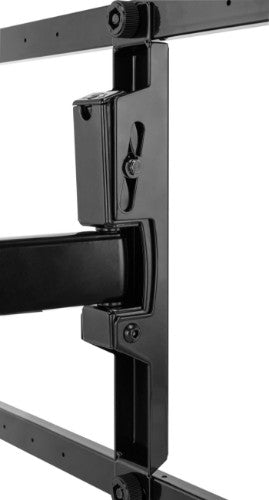

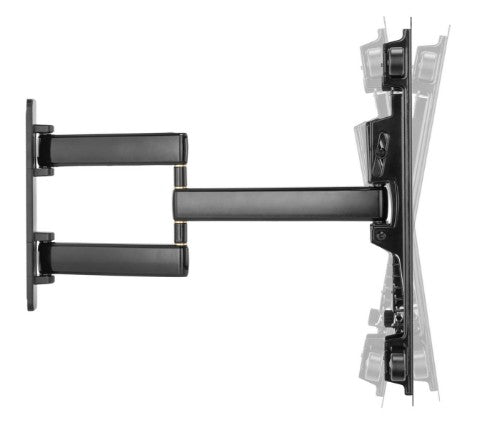

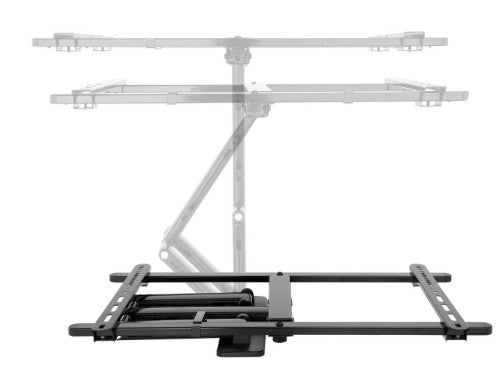

- Tilt +5 -10 degrees Swivel range +/-90 degrees
- With copper bushing for moving smooth
- Cable management
Description
Medium display wall mount full motion, in solid construction in alu black design.With tilting and swiveling features.
Typical installations: Meeting rooms, restaurants, offices, hotels or living room.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 109.2 cm (43") |
| Panel mounting interface | 200 x 200 mm |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Maximum screen size | 2.29 m (90") |
| Maximum weight capacity | 70 kg |
| Ergonomics | |
| Tilt angle range | -5 - 10° |
| Swivel angle | 60° |
| Distance to the wall (min) | 6.9 cm |
| Distance to the wall (max) | 66.1 cm |
| Technical details | |
| Distance to the wall (min) | 6.9 cm |
| Distance to the wall (max) | 66.1 cm |
| Product colour | Black |
| Mounting interface | VESA |
| Extended length | 66.1 cm |
| Mounting type | Wall |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 465 mm |
| Depth | 790 mm |
| Height | 77 mm |
| Weight | 7 kg |
| Depth (max) | 79 cm |
| Packaging data | |
| Package width | 485 mm |
| Package depth | 805 mm |
| Package height | 83.3 mm |
| Package weight | 7.01 kg |
| Other features | |
| Extended length | 66.1 cm |
| Mounting type | Wall |
| Mounting interface | VESA |
