Description
1 x RJ-45 Port, 10/100/1000 Mbps, 802.3af, 200g

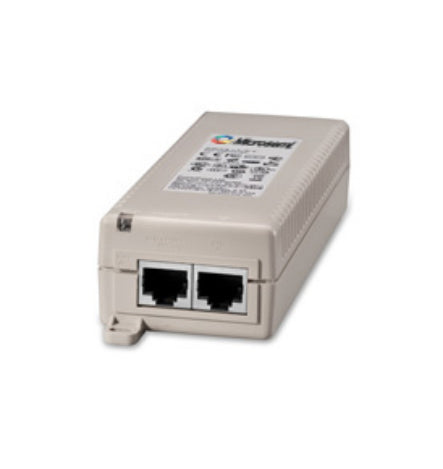

The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Description
PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) voltage | 48 V |
| Features | |
| Plug and Play | Yes |
| Product colour | Grey |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Safety | UL/EN/IEC 60950-1 (Ed.2) |
| LED indicators | Yes |
| Certification | WEEE, CE FCC Part 15, Class B EN 55032 Class B EN 55024 VCCI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Input current | 0.43 A |
| AC adapter input voltage | 110 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Technical details | |
| Number of products included | 1 pc(s) |
| Safety | UL/EN/IEC 60950-1 (Ed.2) |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating altitude | -304.8 - 3048 m |
| Input current | 0.43 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044090 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | -304.8 - 3048 m |
| Weight & dimensions | |
| Weight | 200 g |
| Dimensions (WxDxH) | 51.8 x 160.5 x 34.8 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | WEEE, CE FCC Part 15, Class B EN 55032 Class B EN 55024 VCCI |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85044090 |
